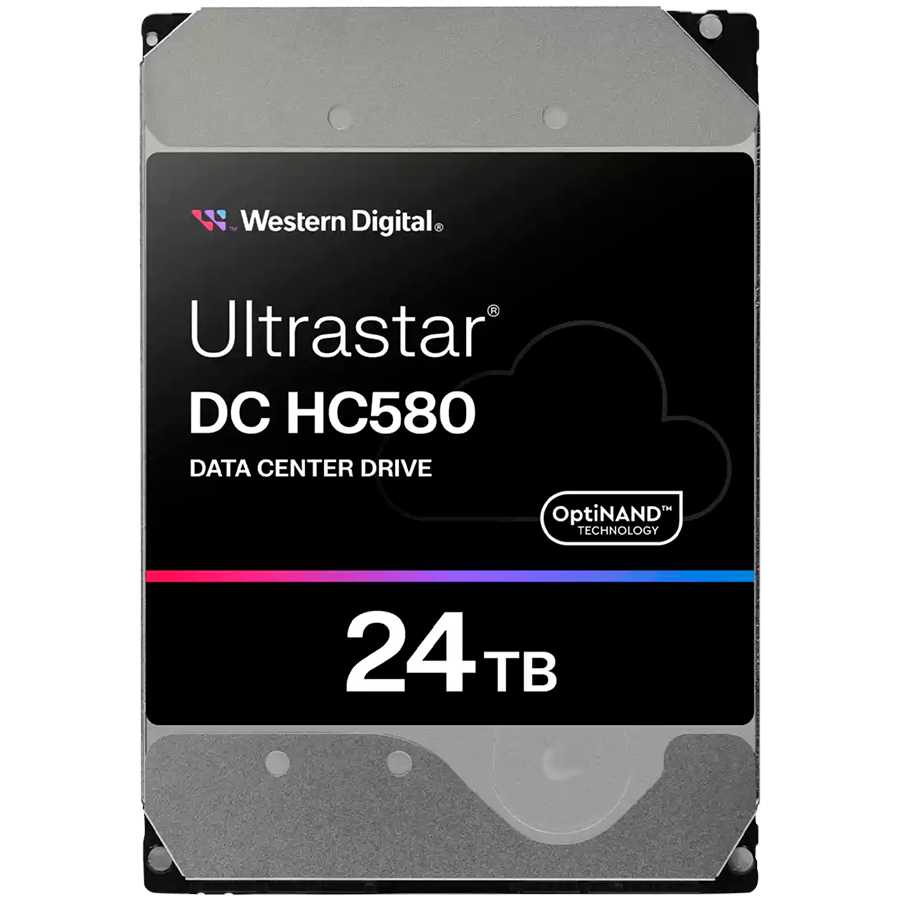

HDD Server WD Ultrastar DC HC580 24TB 512e SE, 3.5’’, 512MB, 7200 RPM, SAS, P3, SKU: 0F62802

Device Location: Plug-in Module

Form Factor: 3.5″

Kapacitet: 24 TB

Supports Data Channel: SAS

Installed Cache Memory Storage Capacity: 512 MB

Sector Capacity: 512 B

Brzina okretaja: 7200 rpm

Average Rotational Delay: 4.16 ms

External Data Bit Rate: 12 Gbps

Non-Recoverable Errors: 1 per 10^15

Mean Time Between Failures: 2500000 hr

Start / Stop Cycles: 600000 cycles

Hard Drive Features: 24/7
HelioSeal Technology
Conventional Magnetic Recording (CMR)

Maximum Supply Voltage: 12 V

Minimum Supply Voltage: 5 V

Maximum Power Consumption: 8.7 W

Minimum Power Consumption: 5 W

Maximum Operating Ambient Temperature: 60 °C

Minimum Operating Ambient Temperature: 5 °C

Maximum Non-Operating Ambient Temperature: 70 °C

Minimum Non-Operating Ambient Temperature: -40 °C

Depth (mm): 147 mm

Height (mm): 26.1 mm

Width (mm): 101.6 mm

Nominal Weight: 0.67 kg

Warranty Products Returnable: Yes

Warranty Term (month): 60 month(s)

Warranty validation Criteria: Serial Number

Pack Length (mm): 102 mm

Pack Width (mm): 147 mm

Pack Height (mm): 27 mm

Pack Weight Brutto (kg): 0.7 kg

Pack Weight Netto (kg): 0.67 kg

Pieces in pack: 1

Box Weight Brutto (kg): 14 kg

Retail Packaging Net Weight Carton: 0 kg

Retail Packaging Net Weight Plastic: 0.03 kg

Packs in Box: 20

Package Type: OEM
