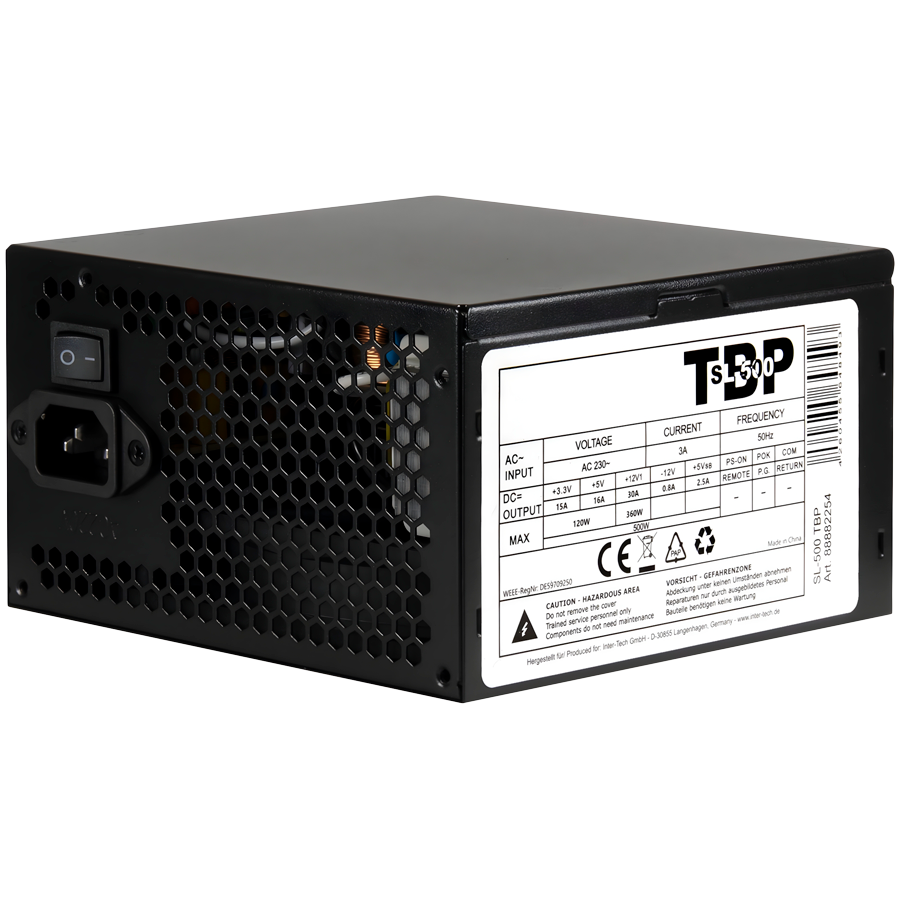

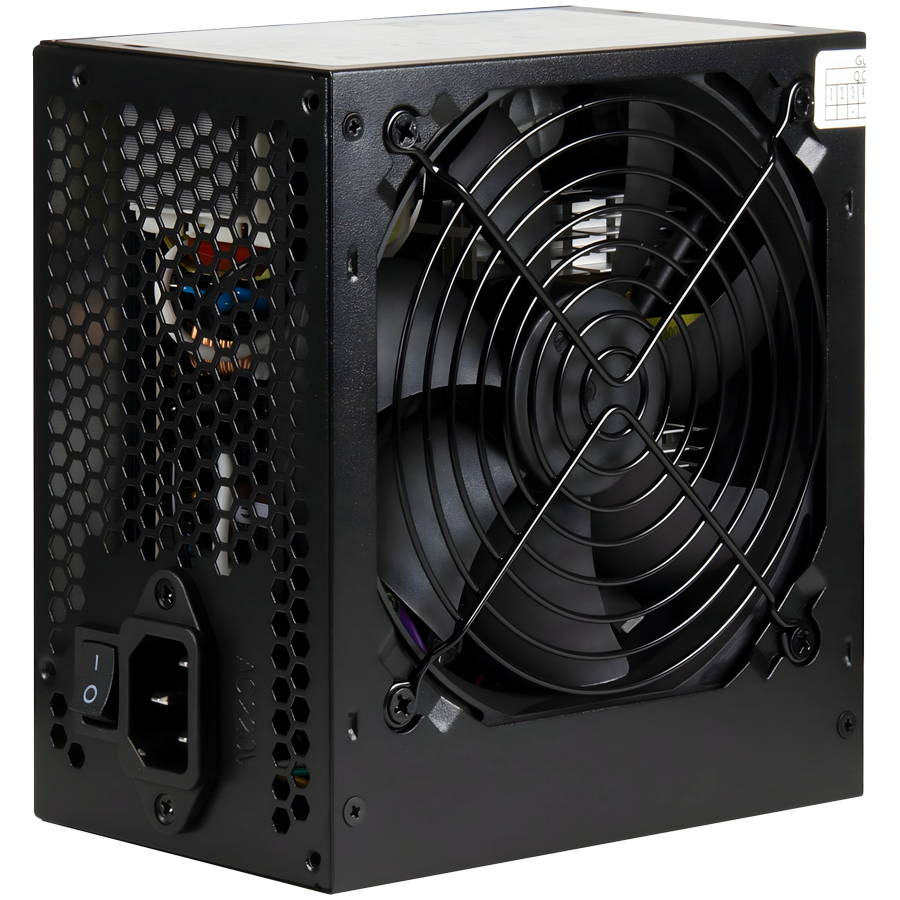

Inter-Tech SL-500 TBP, 500W ATX

Power Device Type: Power Supply

Power Device Location: Plug-in-module

Form Factor: ATX

Input Voltage: AC 230 V

Input Frequency: 50 Hz

Rated Input Current: 3 A

Input Power Connectors Quantity: 1

Maximum Output Power: 500 W

Circuit Protection: Over Voltage
Undervoltage
Over Current
Short Circuit Protection

+3.3V: 15 A (60 W)

+5V: 16 A (60 W)

+12V: 30 A

-12V: 0.8 A

+5VSB: 2.5 A

20+4-pin Main Connector: 1

4/8-pin +12V Power Connector: 1

4-pin Peripheral Power Connector: 2

4-pin Floppy Drive Connector: 1

S-ATA Connector: 3

Maximum Operating Ambient Temperature: 40 °C

Minimum Operating Ambient Temperature: 0 °C

Maximum Non-Operating Ambient Temperature: 70 °C

Minimum Non-Operating Ambient Temperature: -35 °C

Maximum Operating Humidity: 90 %

Minimum Operating Humidity: 10 %

Maximum Non-Operating Humidity: 95 %

Minimum Non-Operating Humidity: 50 %

External Color: Black

Cable Included: Power Cord

Included Documentation: Quick Start Guide

Depth (mm): 150 mm

Height (mm): 86 mm

Width (mm): 140 mm

Nominal Weight: 1.2 kg

Warranty Products Returnable: Yes

Warranty Term (month): 24 month(s)

Warranty Validation Criteria: Serial Number

Pack Weight Brutto (kg): 1.55 kg

Pack Weight Netto (kg): 1.2 kg

Pieces in pack: 1

Box Weight Brutto (kg): 1 kg

Retail Packaging Net Weight Plastic: 1.55 kg

Packs in Box: 1

Package Type: Retail

EAN Code: 4260455648493
