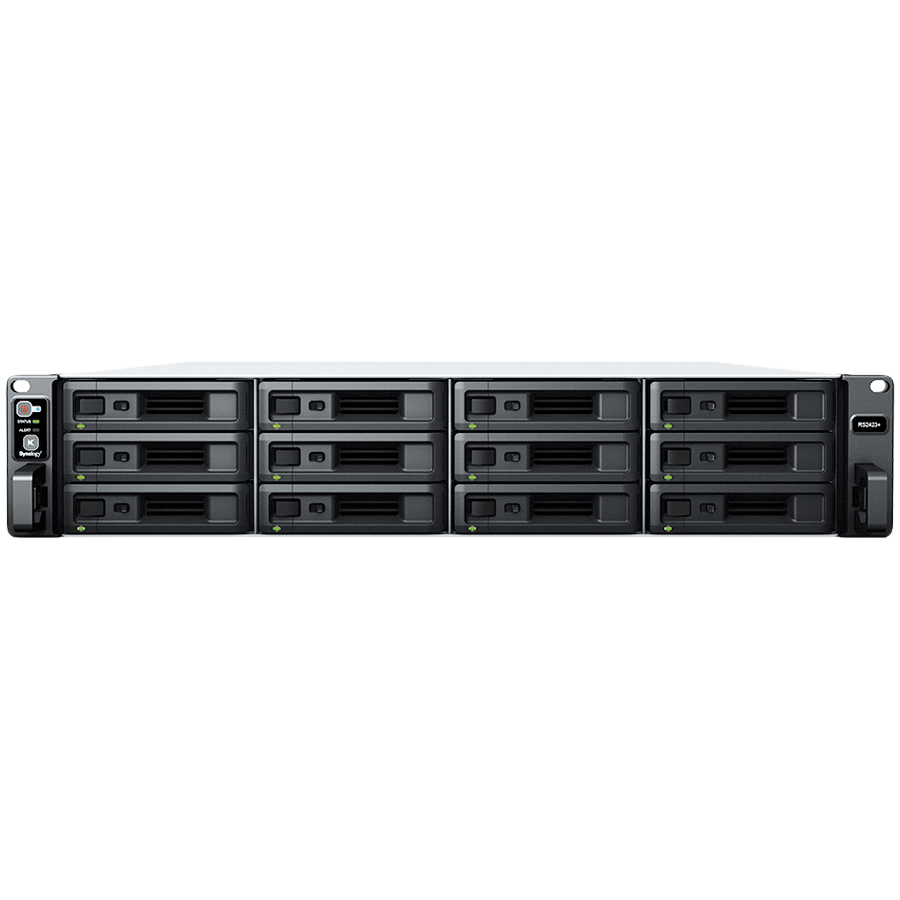

Synology RackStation RS2423+, Rack 2U, 12-bay 3.5”/2.5″ SATA HDD/SSD, AMD Ryzen V1780B 4-core 3.35(base)/3.6 (turbo)GHz,8 GB DDR4 ECC UDIMM,2 x RJ-45 1 GbE LAN,1 x RJ-45 10 GbE LAN,2xUSB 3.2, eSATA port,1 x Gen3 x8 slot PCIe, 11.5kg, 3y

Storage System Type: NAS

Form Factor: Rack-mount

Device Location: Plug-in Module

Built-in Devices: LED Indicator
Power Button
Reset Button

Expansion Slot: PCIe 3.0 x8

CPU: AMD Ryzen V1780B

Internal Clock Rate: 3.6 GHz

CPU Installed Quantity: 1

RAM: 8 DDR4 SDRAM DIMM 288-pin

Maximum Memory Capacity: 32

Memory Slot Total Quantity: 2

Network/Transport Protocol: iSCSI
SMB
NFS
FTP
HTTP
AFP
HTTPS
SNMP
LDAP

Data Link Protocol Supports: 10 Gbps
Gigabit Ethernet/Fast Ethernet/Ethernet

Status Indicator: Activity Status

Provides Data Channel: SATA

Provides Internal Drive Bay Dimension: 2.5″/3.5″

Supports RAID Level: JBOD
Level 0
Level 1
Level 10
Level 5
Level 6

Number of 3.5-inch Hot-Swap Drive Bays: 12

Interface Provided: LAN: 2x Gigabit Ethernet/Fast Ethernet/Ethernet (RJ-45)
LAN: 1x 10 Gigabit (RJ-45)
USB 3.2 Gen 1: 2x (USB 3.2 (type A))
Serial: 1x (9-pin)

Fans Quantity: 3 x 60mm

Mounting Capability: Rackmount

Standard Rack Height: 2 U

External Color: Black

Included Accessories: Quick Start Guide

Cable Included: Power Cord

Certifications: FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, UL

Power Supply: Internal
AC 100-240 V, 50/60 Hz

Power Device Maximum Quantity Supports: 1

Maximum Output Power: 500 W

Power Consumption Operational: 119.95 W

Maximum Operating Ambient Temperature: 35 °C

Minimum Operating Ambient Temperature: 0 °C

Maximum Operating Humidity: 95 %

Minimum Operating Humidity: 5 %

Depth (mm): 552 mm

Height (mm): 88 mm

Width (mm): 482 mm

Nominal Weight: 11.5 kg

Warranty Products Returnable: Yes

Warranty Term (month): 36 month(s)

Warranty validation Criteria: Serial Number

Pack Weight Brutto (kg): 11.5 kg

Pack Weight Netto (kg): 11.5 kg

Pieces in pack: 1

Box Weight Brutto (kg): 11.5 kg

Retail Packaging Net Weight Carton: 11.5 kg

Retail Packaging Net Weight Plastic: 11.5 kg

Packs in Box: 1

Package Type: Box
