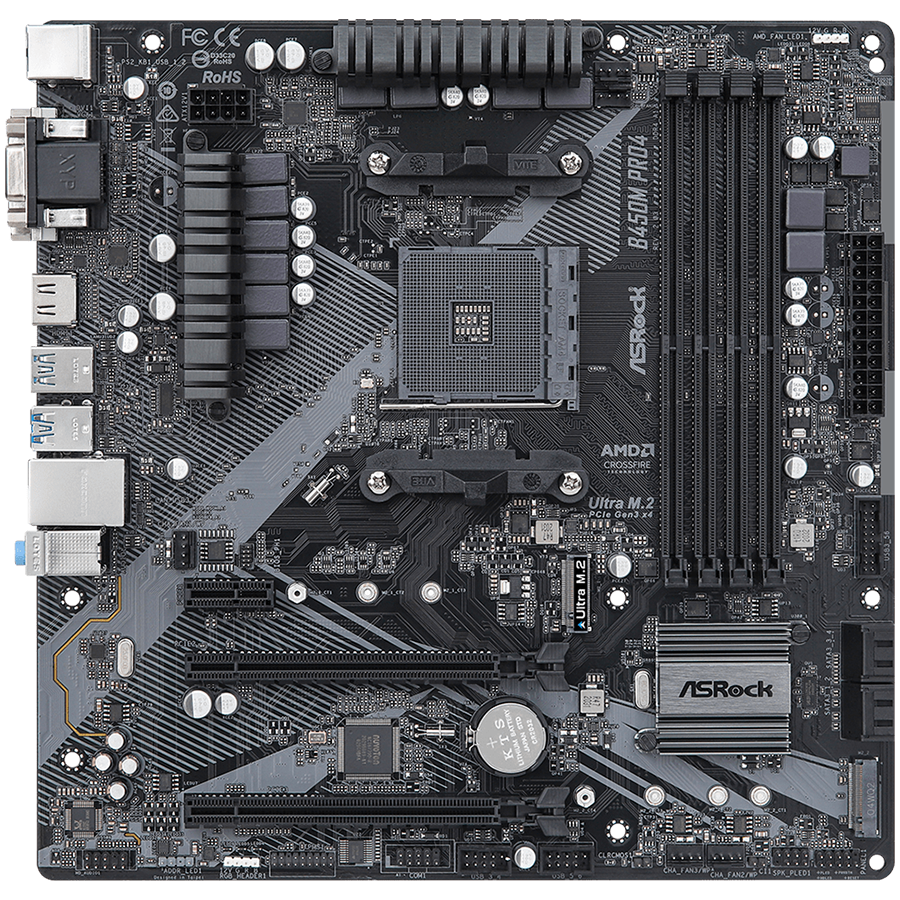

ASROCK Main Board Desktop B450M PRO4 (AM4, 4xDDR4, 1x PCIe 3.0 x16, 1x PCIe 2.0 x16, 1x PCIe 2.0 x1, 4x SATA III, RAID 0,1,10, 1x Ultra M.2 PCIe Gen3 x4, 1x M.2 SATA3, 1x COM Port header, 8x USB 3.0, GLAN, VGA, HDMI, DVI) mATX, Retail

Chipset: AMD B450

Supports Central Processor Unit: AMD Ryzen Series

CPU podnožje: Socket AM4

CPU Maximum Quantity Supports: 1

Vrsta memorije: DDR4 SDRAM

Memory Form Factor: DIMM 288-pin

Memory Speed: 2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2933MHz(PC4-23400)
3200MHz(PC4-25600)

Maximum Installable System Memory Storage Capacity: 128 GB

Memory Slot Total Quantity: 4

Provides Error Checking Method: ECC/non-ECC

Memory Features: Unbuffered
XMP

Integrated: Storage Controller:
Supports: Level 0, Level 1, Level 10
SATA III-600 (6)
Storage Controller:
PCI Express 3.0 x4 (1 x M.2)
Storage Controller:
PCIe/SATA (1 x M.2)

Audio Integrated: yes

Device Location: Integrated

Audio Chipset: Realtek ALC892/ALC897

Audio Output Mode: 7.1 Channel Surround

Compliant Audio Standards: High Definition Audio

LAN Integrated: yes

LAN Chipset: Realtek RTL8111H

Data Link Protocol Supports: Gigabit Ethernet/Fast Ethernet/Ethernet

PCI Express 3.0 x16: 1

PCI Express 2.0 x16: 1

PCI Express 2.0 x1: 1

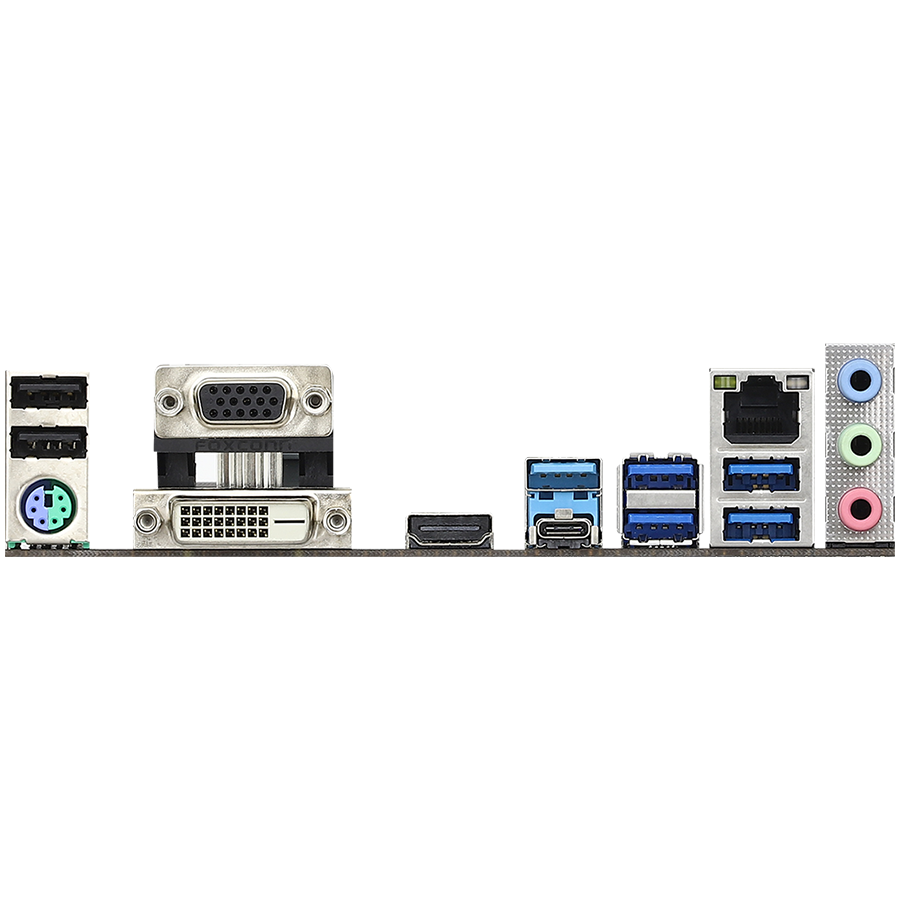

PS/2: 1

VGA: 1 (15-pin D-sub)

HDMI: 1 (HDMI (Type A))

DVI: 1 (DVI-D)

USB 2.0: 2 (USB 2.0 (type A))

USB 3.2 Gen 2: 1 (USB 3.2 (type A)); 1 (USB 3.2 (type C))

USB 3.2 Gen 1: 4 (USB 3.2 (type A))

LAN: 1 (RJ-45)

Audio Interface: 3 (3.5-mm minijack)

BIOS Type: AMI

BIOS Features: PnP Support
SMBIOS 2.3 Support
Supports jumperfree
PXE boot
DRAM Voltage Multi-Adjustment
128Mb AMI UEFI Legal BIOS with GUI Support
ACPI 5.1 Compliant Wake Up Events

Wake up/Sleep: Wake on LAN

Hardware Monitoring: CPU Temperature
CPU Voltage
System Temperature
System Voltage
CPU Fan multi-speed control
Chassis Fan multi-speed control

Power Connectors Type: 24+8 pin

Mainboard Features: 15u Gold contact
AMD Quad CrossFireX
AMD CrossFireX
NVMe Support

Supported Operating System: Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit

Cable Included: 2 x SATA 6Gb/s Cables

Included Accessories: I/O Shield
Quick Start Guide
Screws
CD User Manual

Form Factor: Micro ATX

Height (mm): 224 mm

Width (mm): 244 mm

Warranty Products Returnable: Yes

Warranty Term (month): 24 month(s)

Warranty validation Criteria: Serial Number

Pack Length (mm): 275 mm

Pack Width (mm): 260 mm

Pack Height (mm): 60 mm

Pack Weight Brutto (kg): 1.195 kg

Pack Weight Netto (kg): 0.655 kg

Pieces in pack: 1

Box Weight Brutto (kg): 24.81 kg

Retail Packaging Net Weight Carton: 0.1 kg

Retail Packaging Net Weight Plastic: 0.1 kg

Packs in Box: 20

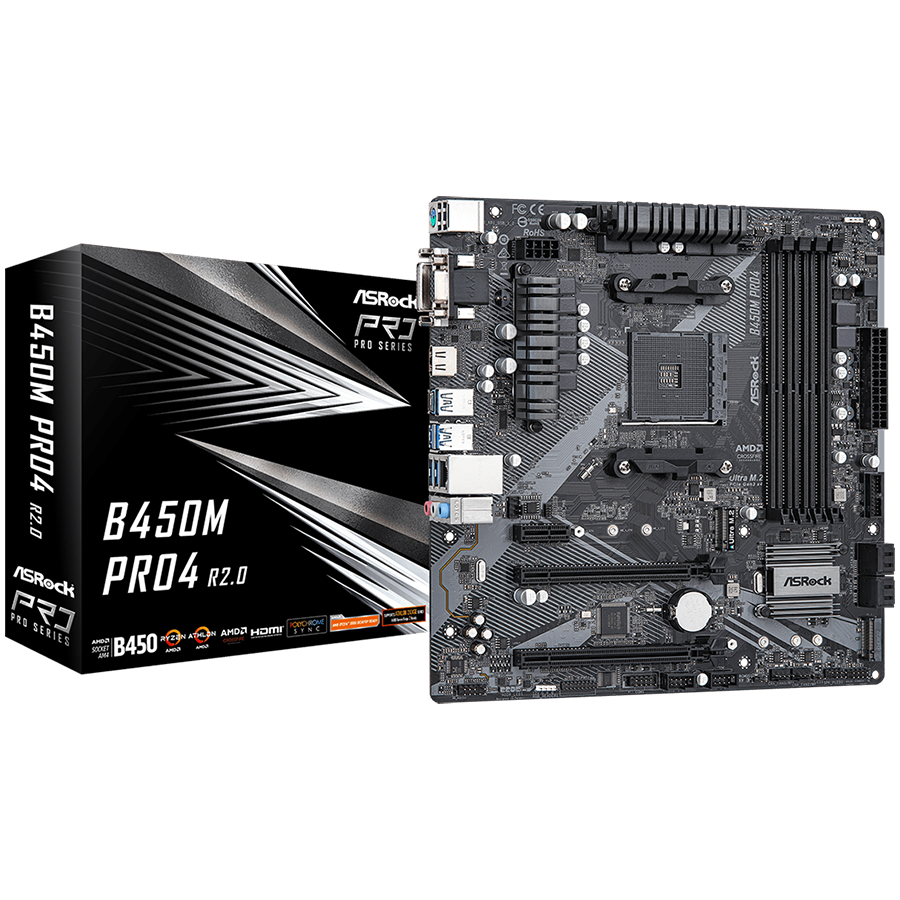

Package Type: Retail

EAN Code: 4710483932793
