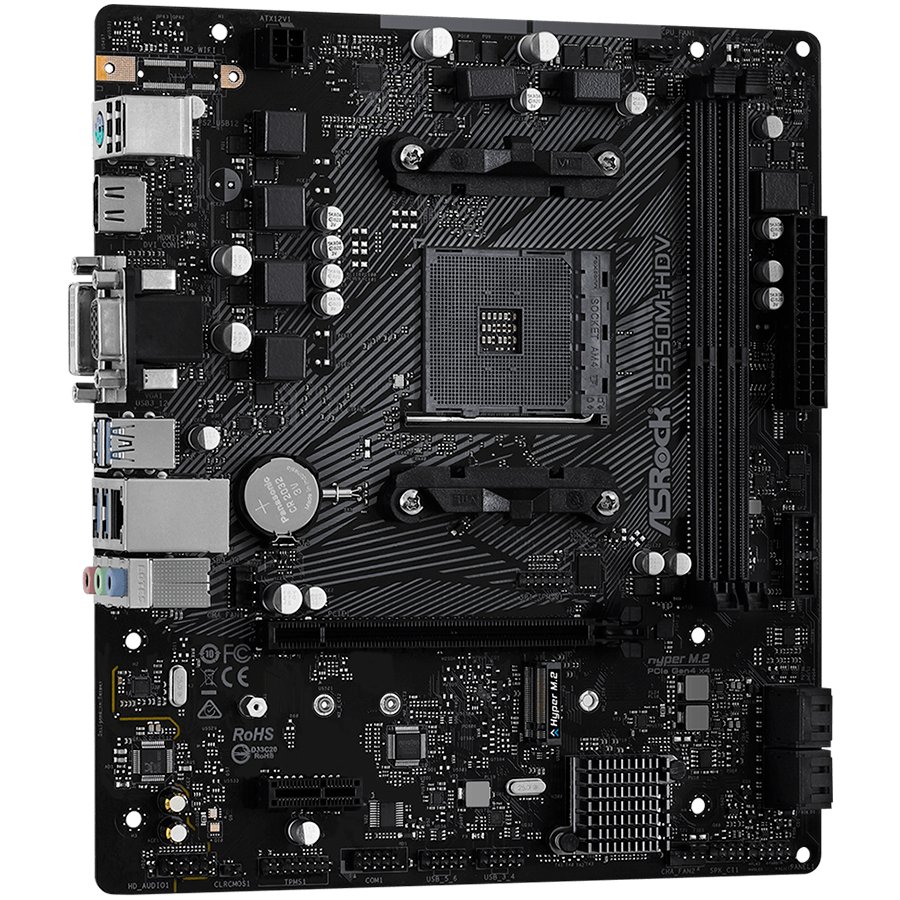

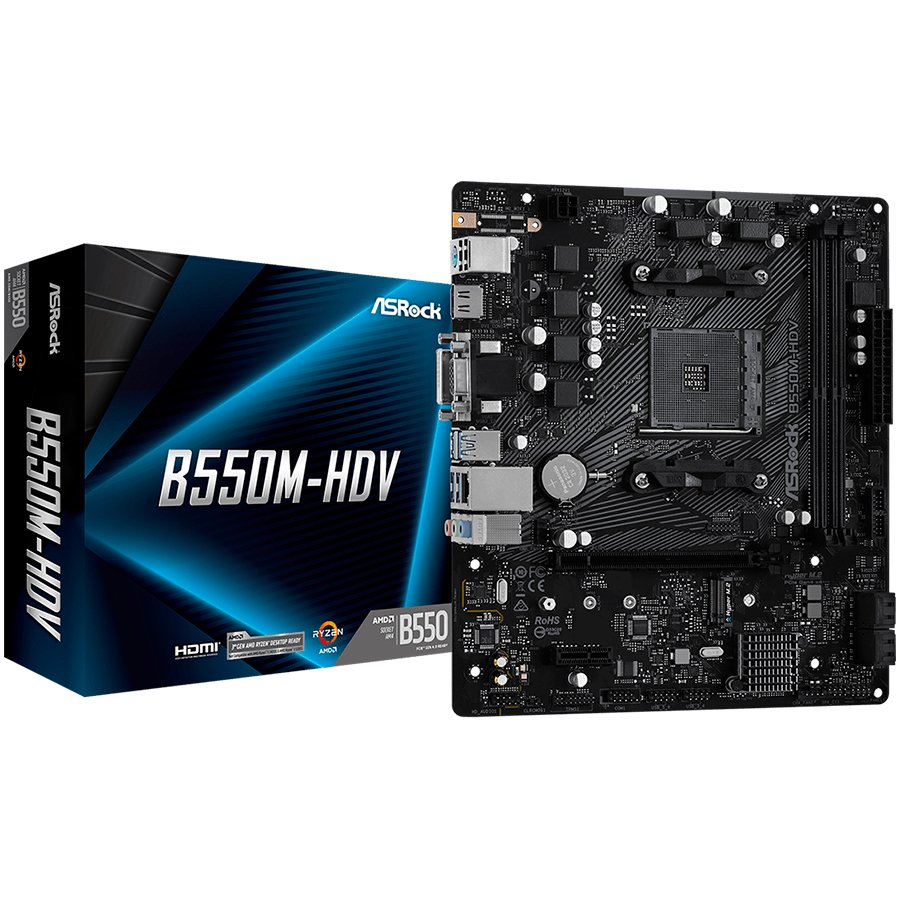

ASROCK MB (AM4, B550, 2xDDR4,1xPCIe x16,1xPCI Ex1, 6xSATA3 , M.2, DP,HDMI,DVI, USB 3.2) ATX

Chipset: AMD B550

Supports Central Processor Unit: AMD Ryzen Series

CPU podnožje: Socket AM4

CPU Maximum Quantity Supports: 1

Vrsta memorije: DDR4 SDRAM

Memory Form Factor: DIMM 288-pin

Memory Speed: 2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2933MHz(PC4-23400)
3200MHz(PC4-25600)

Maximum Installable System Memory Storage Capacity: 32 GB

Memory Slot Total Quantity: 2

Provides Error Checking Method: ECC/non-ECC

Memory Features: Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP

Integrated: Storage Controller:
Supports: Level 01, Level 1, Level 10
SATA III-600 (4)
Storage Controller:
PCIe/SATA (1 x M.2 (Key M))

Audio Integrated: yes

Device Location: Integrated

Audio Chipset: Realtek ALC887

Audio Output Mode: 7.1 Channel Surround

Compliant Audio Standards: High Definition Audio

LAN Integrated: yes

LAN Chipset: Realtek RTL8111H

Data Link Protocol Supports: Gigabit Ethernet/Fast Ethernet/Ethernet

PCI Express 3.0 x16: 1

PS/2: 1

VGA: 1 (15-pin D-sub)

HDMI: 1 (HDMI (Type A))

DVI: 1 (DVI-D)

USB 3.2 Gen 1: 4 (USB 3.2 (type A))

USB 2.0: 2 (USB 2.0 (type A))

Audio Interface: 3 (RJ-45)

LAN: 1 (RJ-45)

BIOS Type: AMI

BIOS Features: PnP Support
SMBIOS 2.3 Support
Supports jumperfree
DRAM Voltage Multi-Adjustment
128Mb AMI UEFI Legal BIOS with GUI Support
ACPI 5.1 Compliant Wake Up Events

Wake up/Sleep: Wake on LAN

Hardware Monitoring: Chassis Fan Tachometer
CPU Fan Tachometer
CPU Temperature
Chassis Temperature Sensing

Power Connectors Type: 24+4 pin

Cable Included: 2 x SATA Data Cables

Included Accessories: I/O Shield
Quick Start Guide
Screws
CD User Manual

Form Factor: Micro ATX

Height (mm): 201 mm

Width (mm): 230 mm

Warranty Products Returnable: Yes

Warranty Term (month): 24 month(s)

Warranty validation Criteria: Serial Number

Pack Length (mm): 275 mm

Pack Width (mm): 240 mm

Pack Height (mm): 58 mm

Pack Weight Brutto (kg): 0.87 kg

Pack Weight Netto (kg): 0.44 kg

Pieces in pack: 1

Box Weight Brutto (kg): 18.05 kg

Retail Packaging Net Weight Carton: 0.01 kg

Retail Packaging Net Weight Plastic: 0.01 kg

Packs in Box: 20

Package Type: Box

EAN Code: 4710483931635
