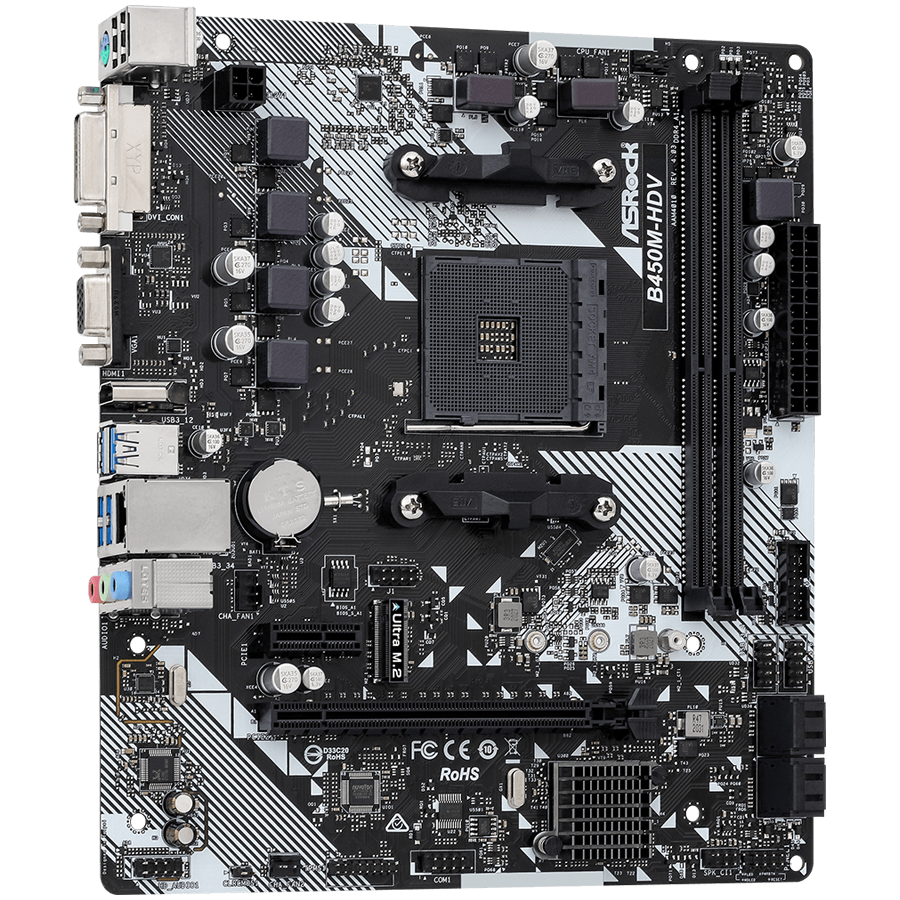

ASROCK MB B450 AM4 2 x DDR4 DIMM 4 x SATA3 1 x Ultra M.2 1 x D-Sub 1 x DVI-D 1 x HDMI Micro ATX

Chipset: AMD B450

Supports Central Processor Unit: AMD Ryzen Series

CPU podnožje: Socket AM4

CPU Maximum Quantity Supports: 1

Vrsta memorije: DDR4 SDRAM

Memory Form Factor: DIMM 288-pin

Memory Speed: 2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2933MHz(PC4-23400)
3200MHz(PC4-25600)

Maximum Installable System Memory Storage Capacity: 64 GB

Memory Slot Total Quantity: 2

Provides Error Checking Method: ECC/non-ECC

Memory Features: Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP

Integrated: Storage Controller:
Supports: Level 0, Level 1, Level 10
SATA III-600 (4)
Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M))

Audio Integrated: yes

Device Location: Integrated

Audio Chipset: Realtek ALC887/ALC897

Audio Output Mode: 7.1 Channel Surround

Compliant Audio Standards: High Definition Audio

LAN Integrated: yes

LAN Chipset: Realtek RTL8111H

Data Link Protocol Supports: Gigabit Ethernet/Fast Ethernet/Ethernet

PCI Express 3.0 x16: 1

PCI Express 2.0 x1: 1

PS/2: 1

VGA: 1 (15-pin D-sub)

DVI: 1 (DVI-D)

HDMI: 1 (HDMI (Type A))

USB 2.0: 2 (USB 2.0 (type A))

USB 3.1 Gen 1: 4 (USB 3.1 (type A))

LAN: 1 (RJ-45)

Audio Interface: 3 (3.5-mm minijack)

BIOS Type: AMI

BIOS Features: PnP Support
SMBIOS 2.3 Support
PXE boot
Jumperfree Support
128Mb AMI UEFI Legal BIOS with GUI Support
ACPI 5.1 Compliant Wake Up Events

Wake up/Sleep: Wake on LAN

Power Connectors Type: 24+4 pin

Mainboard Features: NVMe Support

Supported Operating System: Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit

Cable Included: 2 x SATA Data Cables

Included Accessories: I/O Shield
CD, Software
Quick Start Guide
Screws

Form Factor: Micro ATX

Height (mm): 201 mm

Width (mm): 230 mm

Warranty Products Returnable: Yes

Warranty Term (month): 24 month(s)

Warranty validation Criteria: Serial Number

Pack Weight Brutto (kg): 1 kg

Pack Weight Netto (kg): 1 kg

Pieces in pack: 1

Box Weight Brutto (kg): 1 kg

Retail Packaging Net Weight Carton: 0.01 kg

Retail Packaging Net Weight Plastic: 0.01 kg

Packs in Box: 1

Package Type: Retail

EAN Code: 4717677337617
