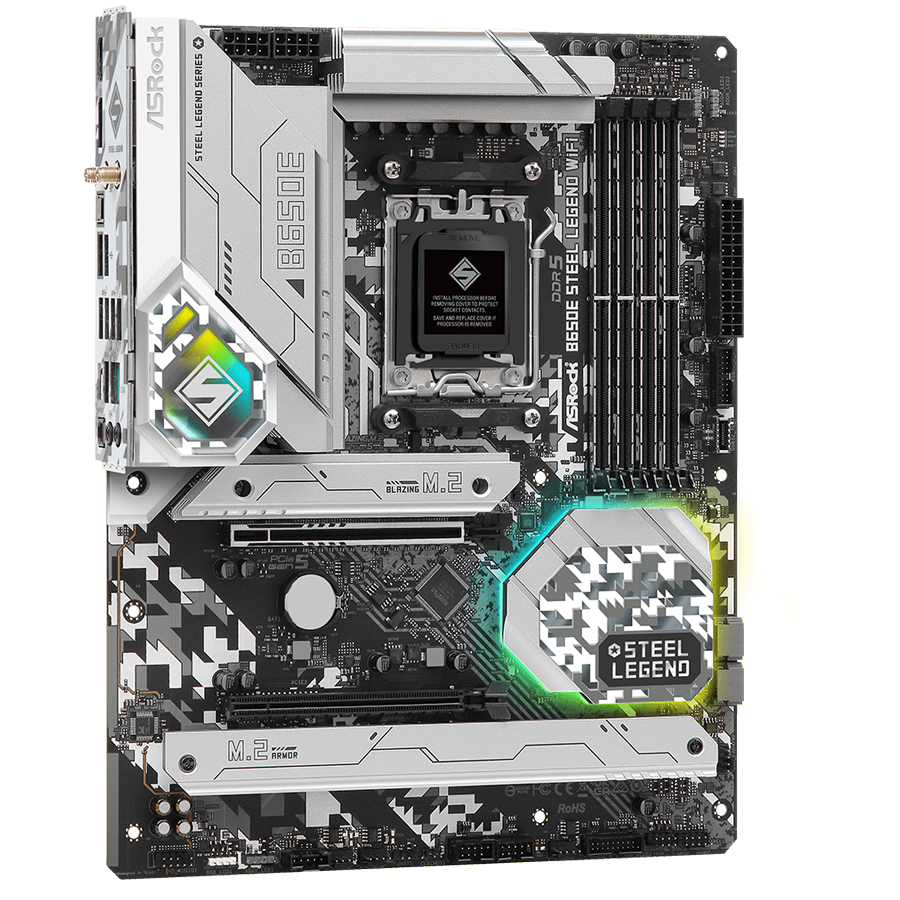

ASROCK MB Desktop B650E Steel Legend, AM5, 4x DDR5, 1x PCIe 5.0 x16, 1x PCIe 3.0 x16, 1x Blazing M.2(PCIe Gen5x4), 2x Hyper M.2(PCIe Gen4x4), 2x SATA3 6.0 Gb/s, 7.1 CH HD Audio, 1x HDMI, 1x DisplayPort, 2.5G LAN, 802.11ax Wi-Fi 6E + Bluetooth

Chipset: AMD B650

Supports Central Processor Unit: AMD Ryzen 7000 Series

CPU podnožje: Socket AM5

CPU Maximum Quantity Supports: 1

Vrsta memorije: DDR5 SDRAM

Memory Form Factor: DIMM 288-pin

Memory Speed: 6400MHz(PC5-51200)

Maximum Installable System Memory Storage Capacity: 128 GB

Memory Slot Total Quantity: 4

Provides Error Checking Method: Non-ECC

Memory Features: Two DDR Channels
Unbuffered
XMP
AMD EXPO

Integrated: Storage Controller:
Supports: Level 0, Level 1, Level 10
SATA III-600 (2)
Storage Controller:
Supports: Level 0, Level 1, Level 10
PCI Express 5.0 x4 (1 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1, Level 10
PCI Express 4.0 x4 (2 x M.2 (Key M))
Wi-Fi Controller:
1 x M.2 (Key E)

Audio Integrated: yes

Device Location: Integrated

Audio Chipset: Realtek ALC897

Audio Output Mode: 7.1 Channel Surround

Compliant Audio Standards: High Definition Audio
Nahimic Audio

LAN Integrated: yes

LAN Chipset: Realtek Dragon RTL8125BG

Wi-Fi: IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n Wi-Fi 4
IEEE 802.11ac Wi-Fi 5
IEEE 802.11ax Wi-Fi 6E

Bluetooth: Bluetooth 5.2

Data Link Protocol Supports: 2.5 Gbps

PCI Express 5.0 x16: 1

PCI Express 3.0 x16: 1

Antenna: 2

HDMI: 1 (HDMI (Type A))

DisplayPort: 1

S/PDIF-out Optical: 1 (TOSLINK)

USB 3.2 Gen 2: 1 (USB 3.2 (type A)); 1 (USB 3.2 (type C))

USB 3.2 Gen 1: 4 (USB 3.2 (type A))

USB 2.0: 2 (USB 2.0 (type A))

LAN: 1 (RJ-45)

Audio Line-Out: 1 (3.5-mm minijack)

Microphone-In: 1 (3.5-mm minijack)

BIOS Type: AMI

BIOS Features: UEFI
256Mb AMI UEFI Legal BIOS with GUI support

Mainboard Features: AMD CrossFire technology

Supported Operating System: Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit

Cable Included: 2 x SATA Data Cables

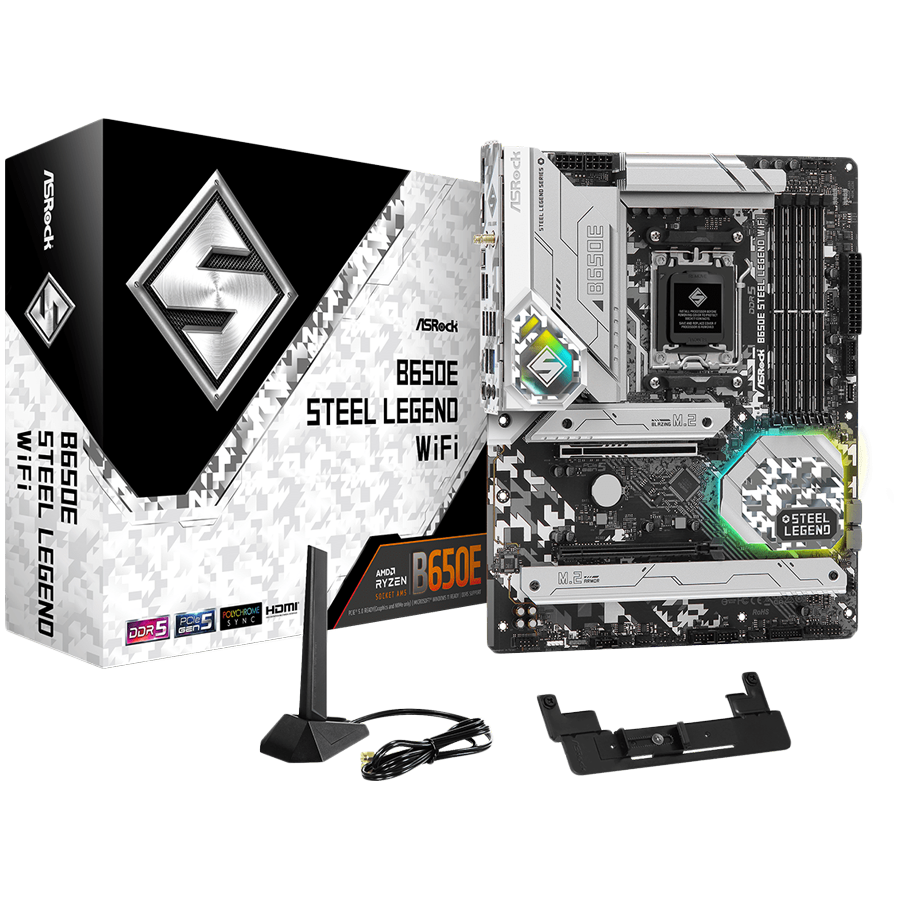

Included Accessories: Quick Start Guide
Screws
WiFi antenna
Graphics Card Holder

Form Factor: ATX

Height (mm): 244 mm

Width (mm): 305 mm

Warranty Products Returnable: Yes

Warranty Term (month): 36 month(s)

Warranty validation Criteria: Serial Number

Pack Length (mm): 382 mm

Pack Width (mm): 319 mm

Pack Height (mm): 94 mm

Pack Weight Brutto (kg): 2.421 kg

Pack Weight Netto (kg): 1.265 kg

Pieces in pack: 1

Box Weight Brutto (kg): 13.47 kg

Retail Packaging Net Weight Carton: 0.5 kg

Retail Packaging Net Weight Plastic: 0.5 kg

Packs in Box: 5

Package Type: Retail

EAN Code: 4710483940866
