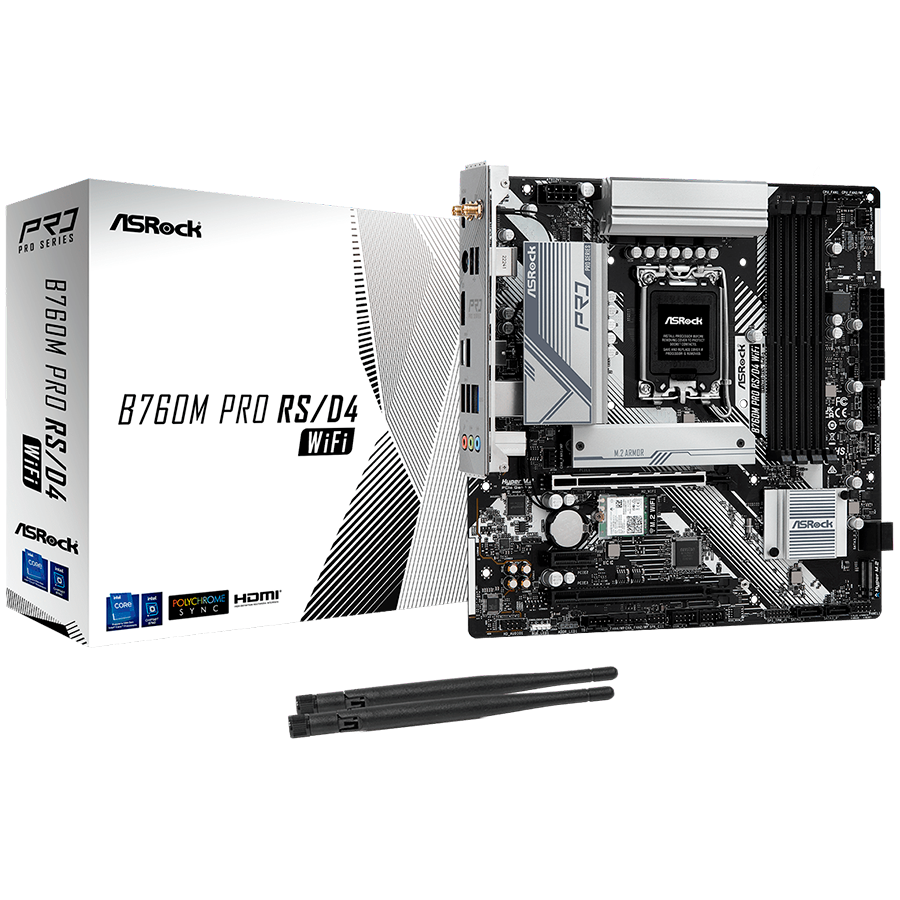

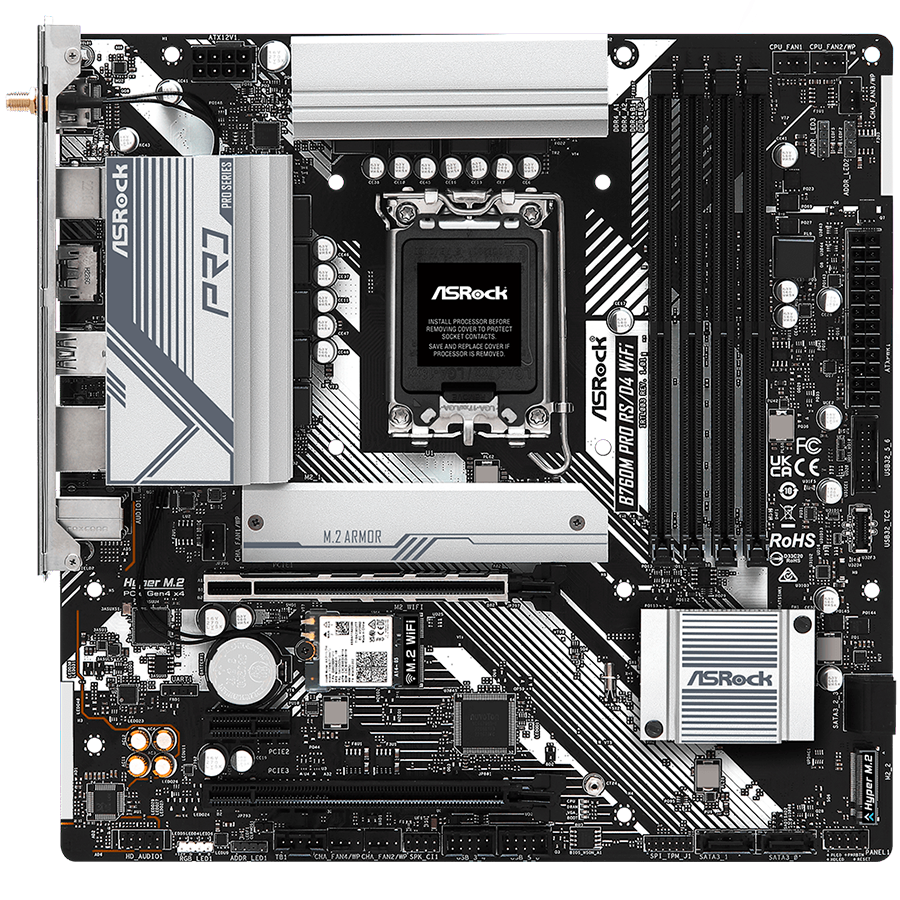

ASROCK MB Desktop B760M Pro RS Wi-Fi (S1700, 4x DDR4, 2x PCIe 4.0 x16, 1x PCIe 4.0 x1, 1x Hyper M.2 PCIe Gen4x4, 4x SATA3, 2x USB-C, 5x USB 3.2, 6x USB 2.0, 1xRJ-45 2.5GB, 2x 802.11ax Wi-Fi, 1x HDMI, 1x DP, 7.1 HD Audio, micro ATX.

Chipset: Intel B760

Supports Central Processor Unit: Intel 12th Gen Processors
Intel 13th Gen Processors
Intel 14th Gen Processors

CPU podnožje: Socket 1700

Architecture Features: Intel Turbo Boost Max Technology 3.0
Intel Hybrid Technology
Intel Thermal Velocity Boost
Intel Adaptive Boost Technology

CPU Maximum Quantity Supports: 1

Vrsta memorije: DDR4 SDRAM

Memory Form Factor: DIMM 288-pin

Memory Speed: 5333MHz(PC4-42600)

Maximum Installable System Memory Storage Capacity: 128 GB

Memory Slot Total Quantity: 4

Provides Error Checking Method: non-ECC

Memory Features: Two DDR Channels
Unbuffered
XMP 2.0

Integrated: Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (4)
Storage Controller:
PCI Express 4.0 x4 (2 x M.2 (Key M))

Plug-in-card: Wi-Fi Controller:
1 x M.2 (Key E)

Video Controller Integrated: yes

Video Chipset: Intel Iris Xe Graphics

Audio Integrated: yes

Device Location: Integrated

Audio Chipset: Realtek ALC897

Audio Output Mode: 7.1 Channel Surround

Compliant Audio Standards: High Definition Audio
Nahimic Audio

LAN Integrated: yes

LAN Chipset: Realtek RTL8125BG

Wi-Fi: IEEE 802.11ax Wi-Fi 6E

Bluetooth: Bluetooth 5.3

Data Link Protocol Supports: Gigabit Ethernet/Fast Ethernet/Ethernet
2.5 Gbps

PCI Express 4.0 x16: 2

PCI Express 4.0 x1: 1

Antenna: 2

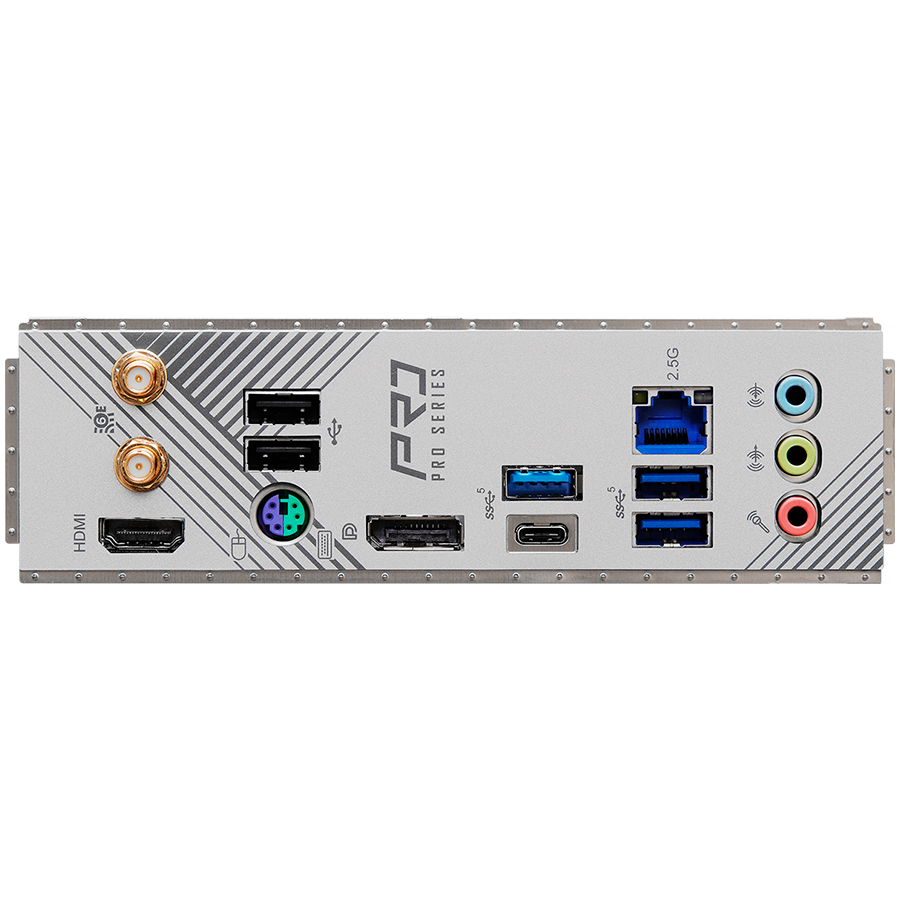

HDMI: 1 (HDMI (Type A))

DisplayPort: 1

USB 3.2 Gen 1: 1 (USB 3.2 (type C)); 3 (USB 3.2 (type A))

USB 2.0: 2 (USB 2.0 (type A))

LAN: 1 (RJ-45)

Audio Interface: 3 (3.5-mm minijack)

PS/2: 1

BIOS Type: UEFI

BIOS Features: 128Mb AMI UEFI Legal BIOS with GUI Support

Mainboard Features: AMD CrossFire technology
RGB LED

Supported Operating System: Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit

Cable Included: 2 x SATA cables

Included Accessories: Quick Start Guide
Screws
WiFi antenna x 2

Form Factor: Micro ATX

Height (mm): 244 mm

Width (mm): 244 mm

Warranty Products Returnable: Yes

Warranty Term (month): 36 month(s)

Warranty validation Criteria: Serial Number

Pack Length (mm): 275 mm

Pack Width (mm): 260 mm

Pack Height (mm): 60 mm

Pack Weight Brutto (kg): 1.285 kg

Pack Weight Netto (kg): 0.86 kg

Pieces in pack: 1

Box Weight Brutto (kg): 13.85 kg

Retail Packaging Net Weight Carton: 0.25 kg

Retail Packaging Net Weight Plastic: 0.25 kg

Packs in Box: 10

Package Type: Retail

EAN Code: 4710483941719
