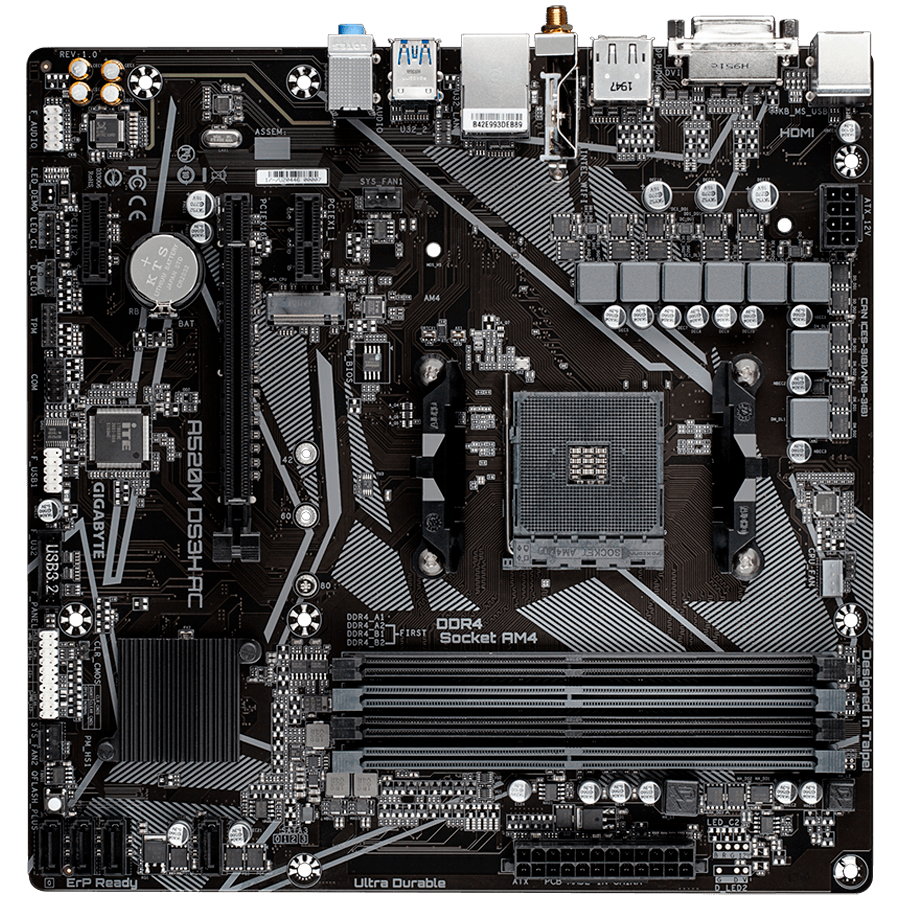

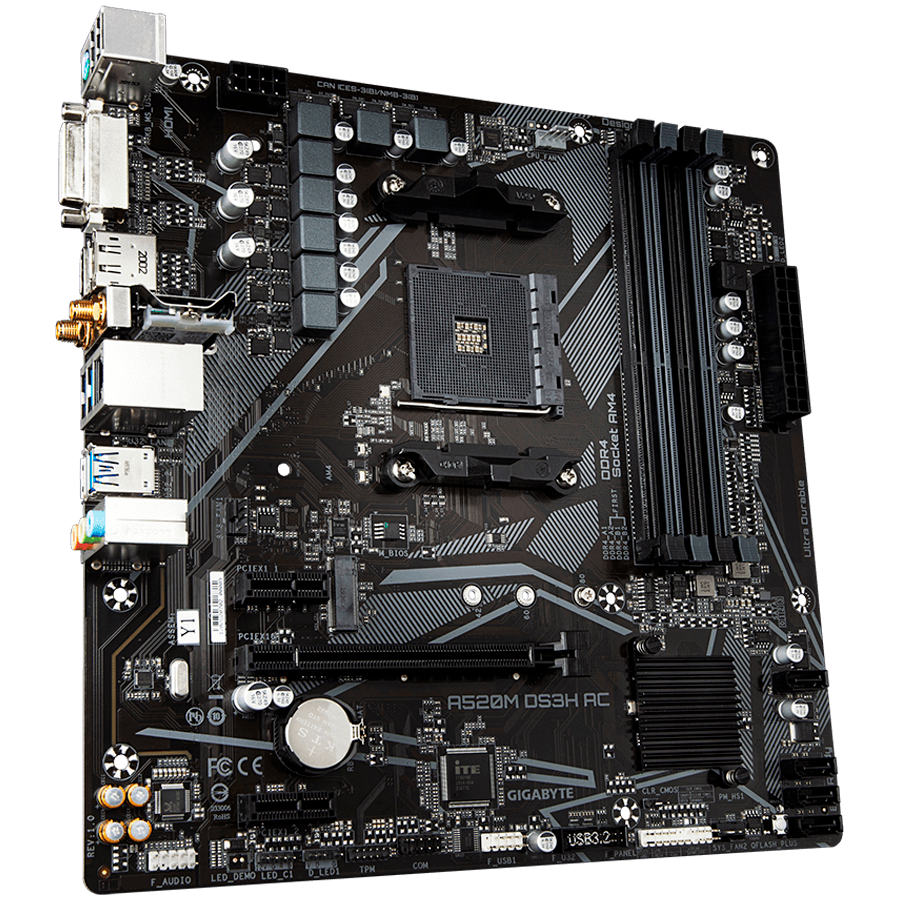

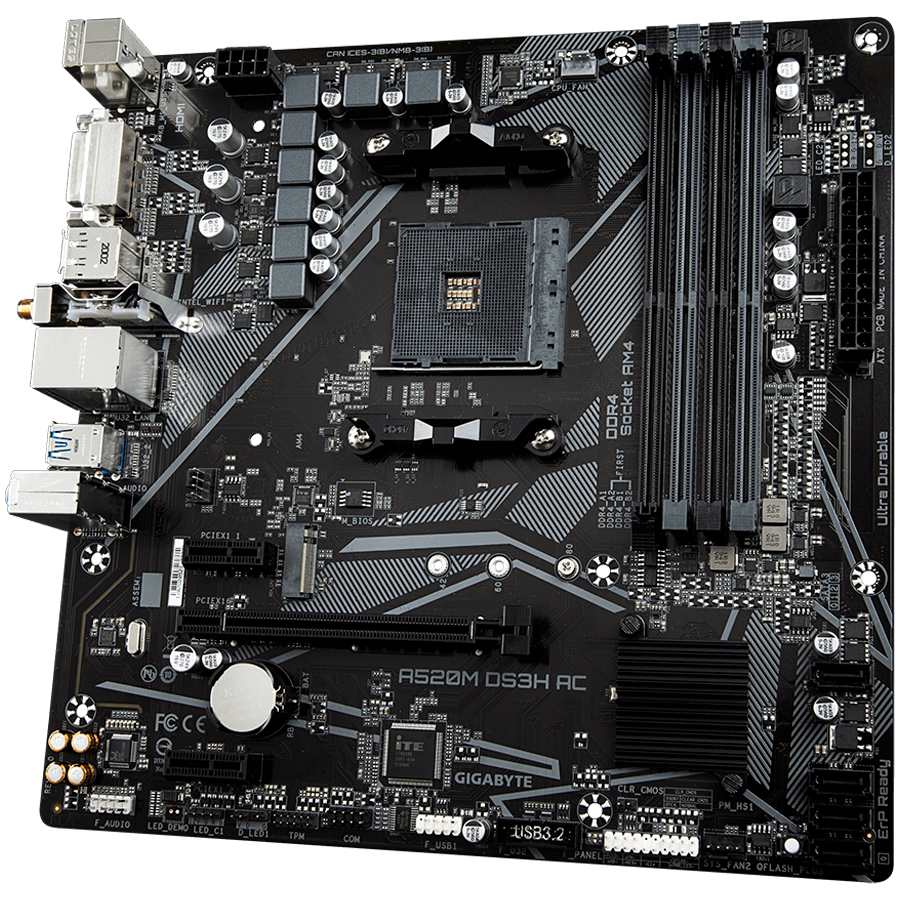

GIGABYTE A520M DS3H AC, Socket AM4, 4x DDR4, WiFi, mATX

Chipset: AMD A520

CPU podrška: AMD Ryzen 5000 Series
AMD Ryzen 4000 Series
AMD Ryzen 3000 Series

CPU podnožje: Socket AM4

CPU Max. količina: 1

Vrsta memorije: DDR4 SDRAM

Format memorije: DIMM 288-pin

Brzina memorije: 2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2933MHz(PC4-23466)
3200MHz(PC4-25600)

Max. kapacitet memorije: 128 GB

Količina utora: 4

Provjera pogrešaka: ECC/non-ECC

Značajke memorije: Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP

Plug-in-card: Wi-Fi Controller:
Intel Dual Band Wireless-AC 3168

Integriran: Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1, Level 10
SATA III-600 (4)

Integrirani audio: Da

Vrsta: Integriran

Audio izlaz: 7.1 Channel Surround

Audio standard: HD audio

Integrirani LAN: Da

Wi-Fi: IEEE 802.11ac Wi-Fi 5

Bluetooth: Bluetooth 4.2

Podržana brzina: Gigabit Ethernet/Fast Ethernet/Ethernet

PCI Express 3.0 x16: 1

PCI Express 3.0 x1: 2

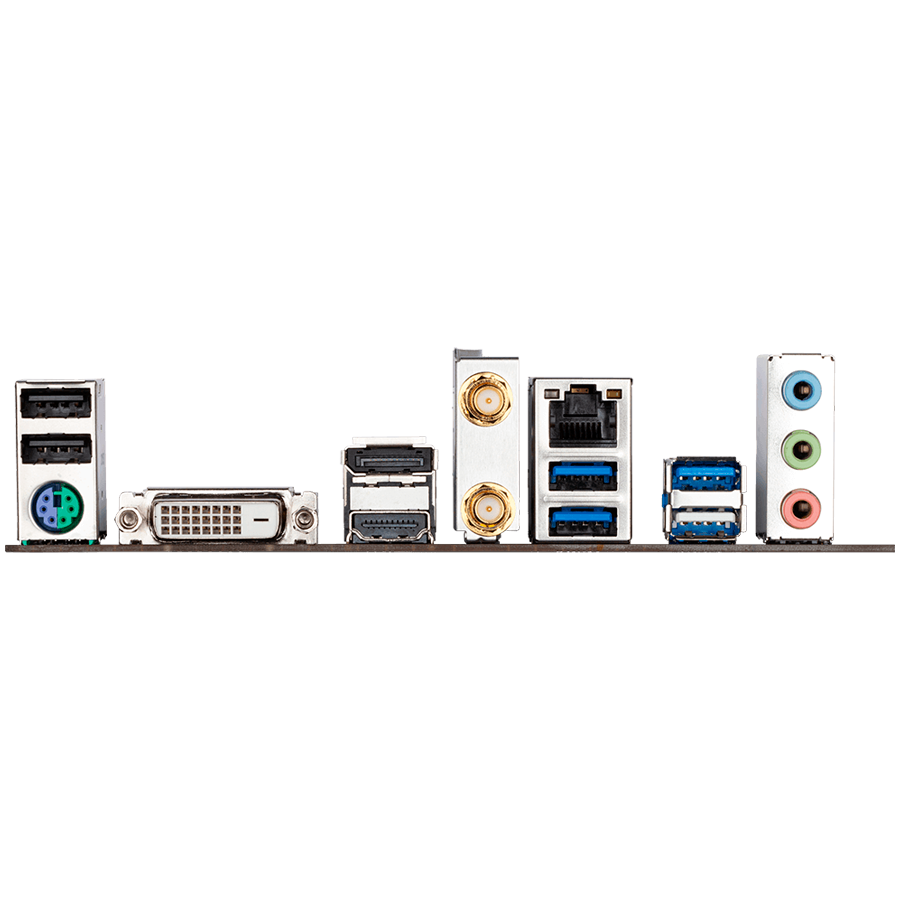

PS/2: 1

DVI: 1 (DVI-D)

DisplayPort: 1

HDMI: 1 (HDMI (Type A))

Antenna: 2

USB 3.2 Gen 1: 4 (USB 3.2 (type A))

USB 2.0: 2 (USB 2.0 (type A))

LAN: 1 (RJ-45)

Audio izlaz: 3 (3.5-mm minijack)

BIOS vrsta: AMI

BIOS: Gigabyte Q-Flash
WfM 2.0 Support
PnP 1.0a Support
UEFI
SMBIOS 2.7 Support
128 Mb Flash ROM
DMI 2.7 Support
ACPI 5.0 Support

Nadzor: CPU Temperature
CPU Voltage
System Temperature
System Voltage

Power Connectors Type: 24+8 pin

Mainboard Features: Fan Speed Control

Softver: Norton Internet Security (OEM version)

Podržani operativni sustavi: Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit

Format: Micro ATX

Visina (mm): 244 mm

Širina (mm): 244 mm

Jamstvo u Hrvatskoj: Da

Jamstveni rok (mjeseci): 36 mjeseci(a)

Validacija jamstva: Serijski broj

Bruto težina (kg): 0.75 kg

Neto težina (kg): 0.6 kg

Količina u pakiranju: 1

Bruto težina kutije (kg): 0.75 kg

Količina u kutiji: 1

Vrsta pakiranja: Maloprodajno

EAN kod: 4719331810696
