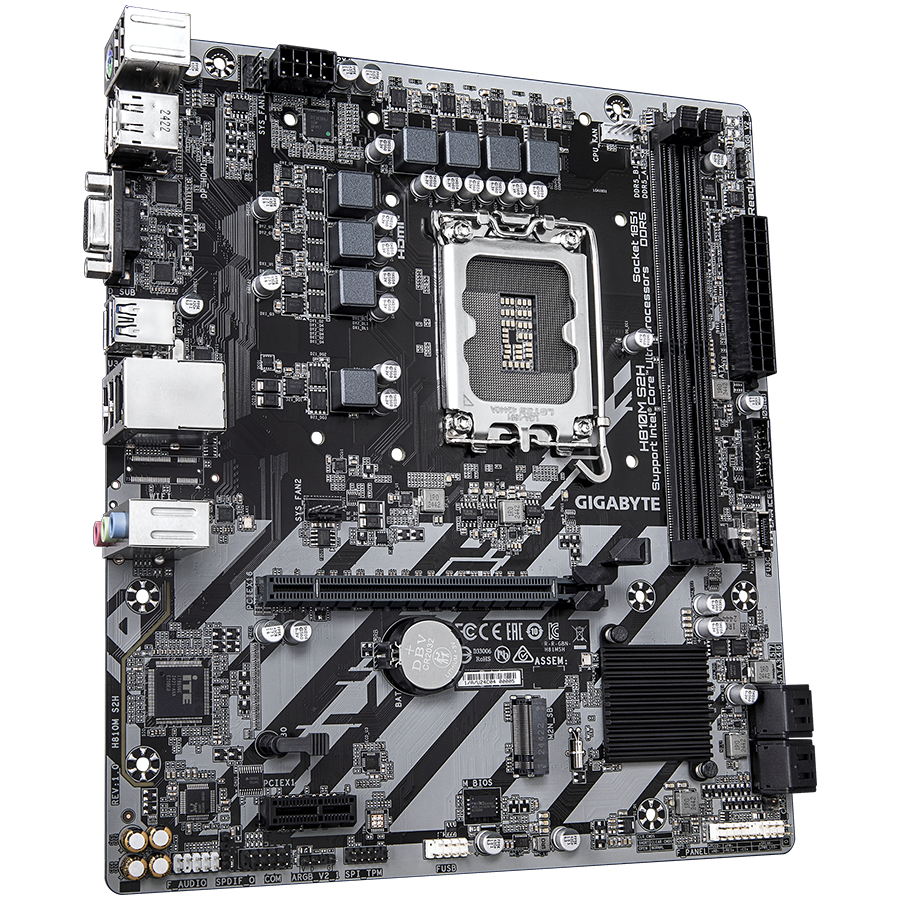

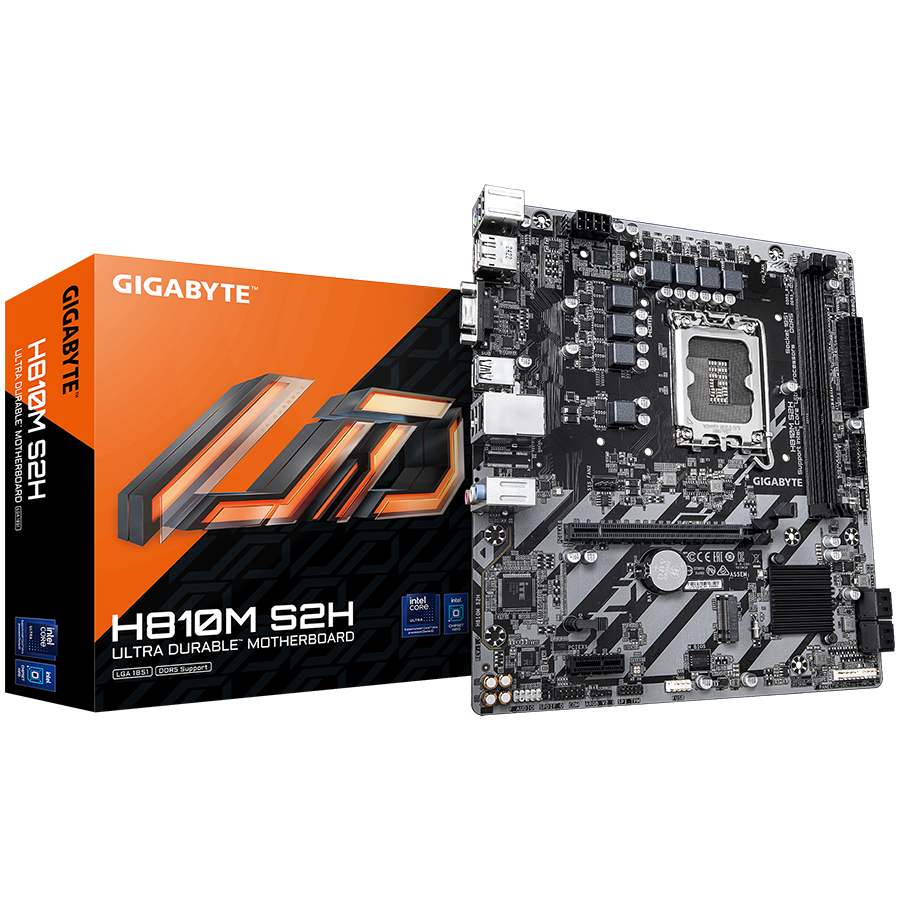

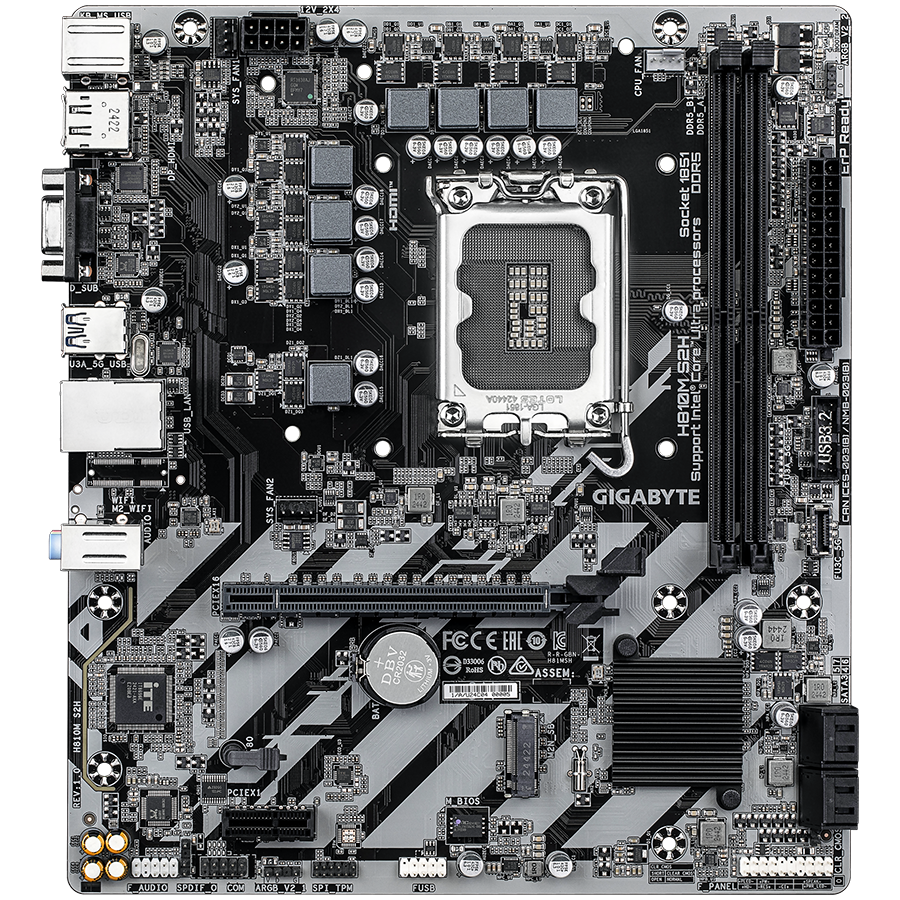

GIGABYTE H810M S2H, LGA1851, 2x DDR5, mATX

Chipset: Intel H810

CPU podrška: Intel Core Ultra Processors (Series 2)

CPU podnožje: Socket 1851

CPU Max. količina: 1

Vrsta memorije: DDR5 SDRAM

Format memorije: DIMM 288-pin

Brzina memorije: 6400MHz(PC5-51200)

Max. kapacitet memorije: 128 GB

Količina utora: 2

Značajke memorije: Unbuffered
Dual Rank
Single Rank
XMP

Integriran: Storage Controller:
PCI Express 4.0 x4 (1 x M.2 (Key M))
Storage Controller:
SATA III-600 (4)

Integrirani audio: Da

Vrsta: Integriran

Audio izlaz: 7.1 Channel Surround

Audio standard: HD audio

Integrirani LAN: Da

Podržana brzina: Gigabit Ethernet/Fast Ethernet/Ethernet

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 1

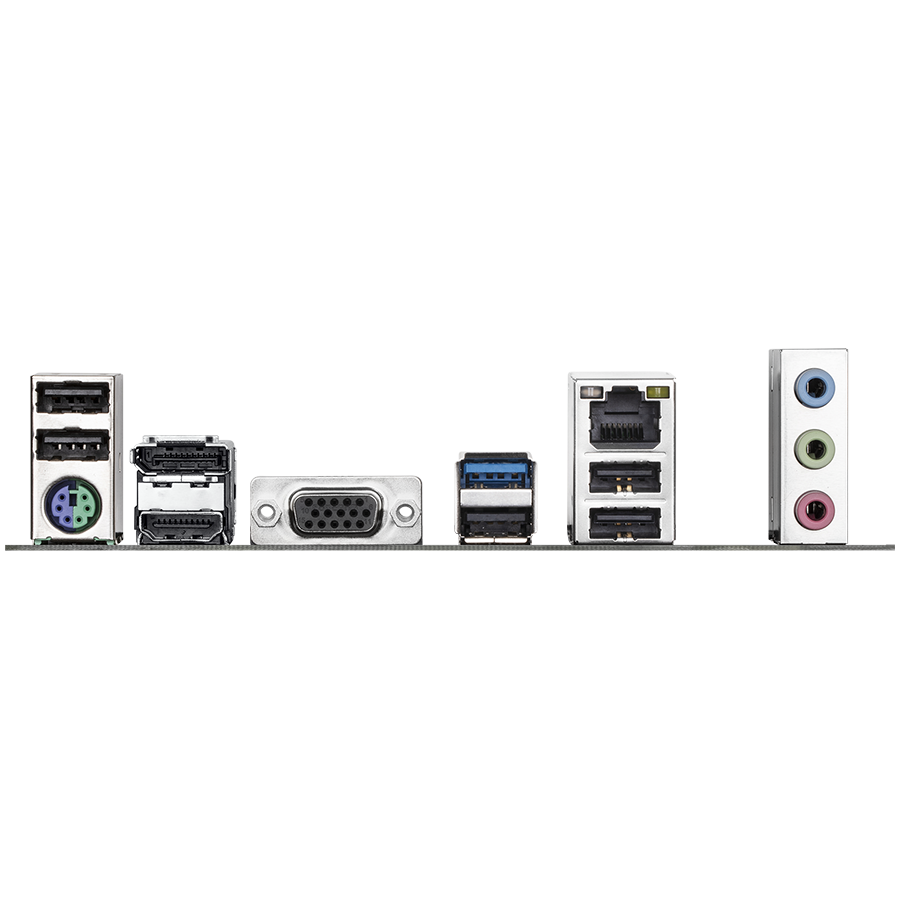

PS/2: 1

USB 2.0: 5 (USB 2.0 (type A))

HDMI: 1 (HDMI (Type A))

DisplayPort: 1

VGA: 1 (15-pin D-sub)

USB 3.2 Gen 1: 1 (USB 3.2 (type A))

LAN: 1 (RJ-45)

Audio izlaz: 3 (3.5-mm minijack)

BIOS vrsta: AMI

BIOS: Gigabyte Q-Flash
WfM 2.0 Support
PnP 1.0a Support
UEFI
SMBIOS 2.7 Support
DMI 2.7 Support
ACPI 5.0 Support
256 Mb Flash ROM

Nadzor: CPU Temperature
CPU Voltage
System Temperature
System Voltage

Power Connectors Type: 24+8 pin

Mainboard Features: Fan Speed Control

Softver: Norton Internet Security (OEM version)

Podržani operativni sustavi: Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit

Format: Micro ATX

Visina (mm): 215 mm

Širina (mm): 244 mm

Jamstvo u Hrvatskoj: Da

Jamstveni rok (mjeseci): 36 mjeseci(a)

Validacija jamstva: Serijski broj

Dužina (mm): 265 mm

Širina (mm): 265 mm

Visina (mm): 54 mm

Bruto težina (kg): 0.87 kg

Neto težina (kg): 0.79 kg

Količina u pakiranju: 1

Bruto težina kutije (kg): 1.3 kg

Količina u kutiji: 1

Vrsta pakiranja: Maloprodajno

EAN kod: 4719331869168
