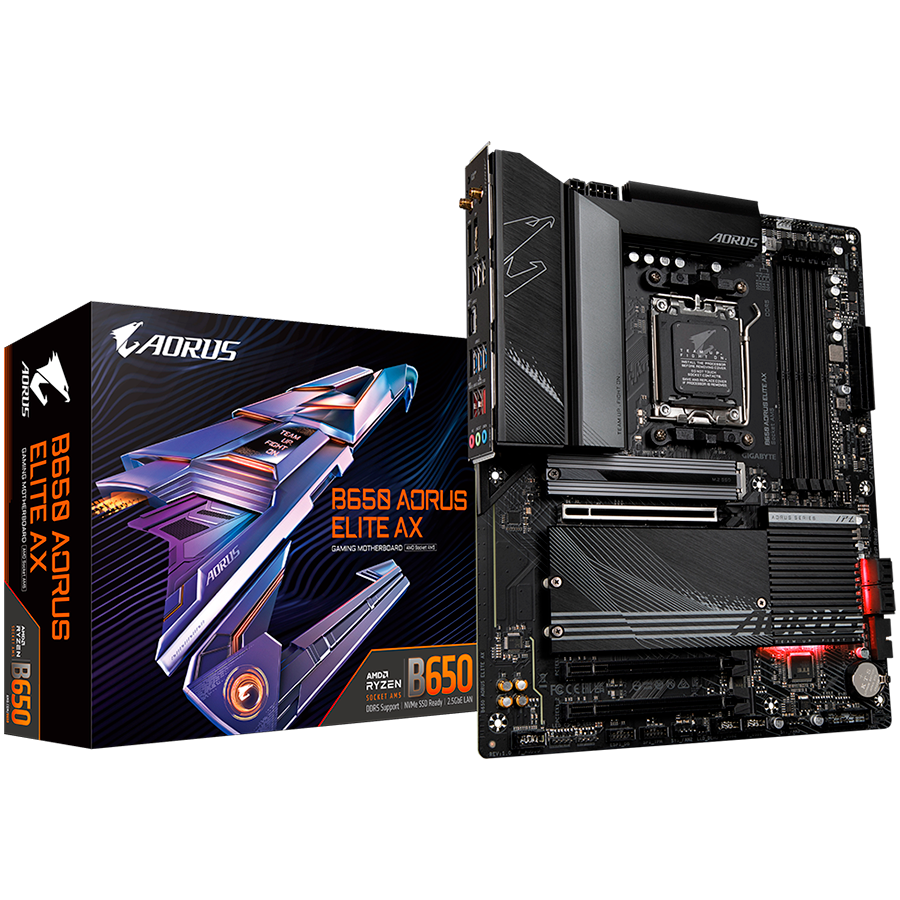

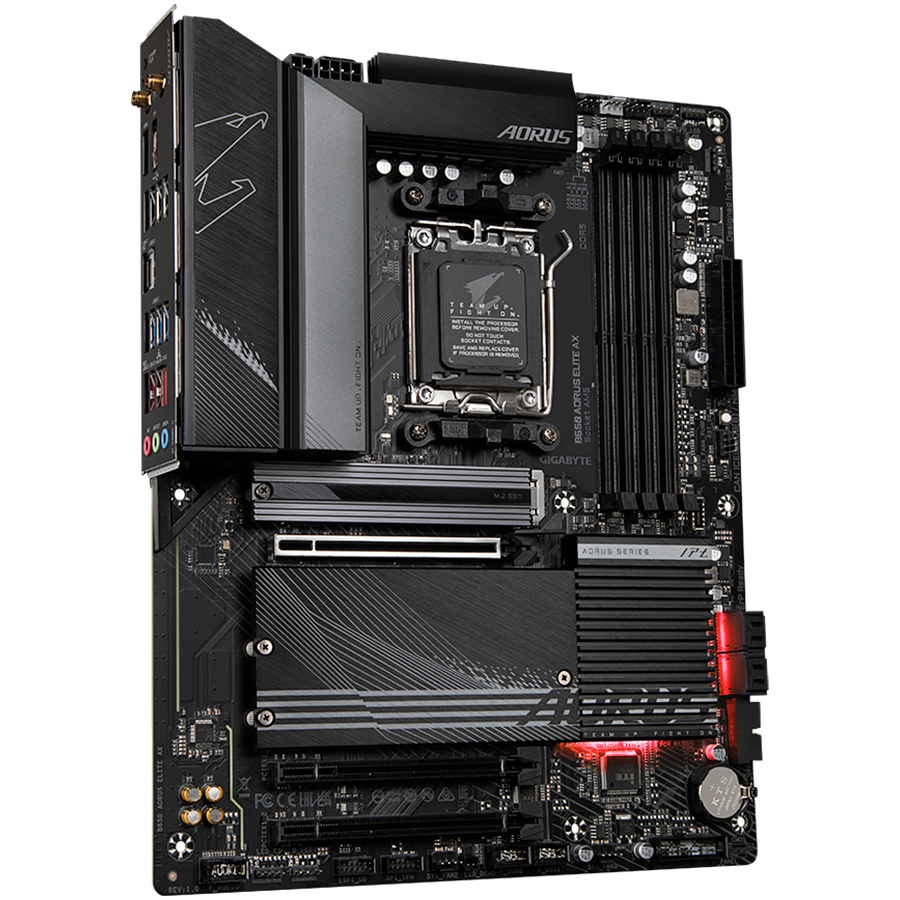

GIGABYTE Mainboard Desktop B650 AORUS ELITE AX 1.0 (AM5, 4xDDR5, DP, HDMI, 2.5GbE LAN, Wi-Fi 6E, BT 5.2, 1xPCI Ex x16 4.0, 2xPCI Ex x16 3.0, 3xM.2, 4xSATAIII, 1xUSB C, 2xUSB3.2 Gen2, 4xUSB2.0/1.1)ATX

Chipset: AMD B650

CPU podrška: AMD Ryzen 7000 Series

CPU podnožje: Socket AM5

CPU Max. količina: 1

Vrsta memorije: DDR5 SDRAM

Format memorije: DIMM 288-pin

Brzina memorije: 4800MHz(PC5-38400)
5200MHz(PC5-41600)

Max. kapacitet memorije: 128 GB

Količina utora: 4

Provjera pogrešaka: Non-ECC

Značajke memorije: Unbuffered
Dual Rank
Single Rank
XMP

Integriran: Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (4)
Storage Controller:
PCI Express 4.0 x4 (2 x M.2 (Key M))
Wi-Fi Controller:
1 x M.2 (Key E)
Storage Controller:
PCI Express 5.0 x4 (1 x M.2 (Key M))

Integrirani audio: Da

Vrsta: Integriran

Audio izlaz: 7.1 Channel Surround

Audio standard: HD audio

Integrirani LAN: Da

Wi-Fi: IEEE 802.11ax Wi-Fi 6

Bluetooth: Da

Podržana brzina: 2.5 Gbps
Gigabit Ethernet

PCI Express 4.0 x16: 1

PCI Express 3.0 x16: 2

USB 3.2 Gen 1: 5 (USB 3.2 (type A))

USB 2.0: 4 (USB 2.0 (type A))

USB 3.2 Gen 2: 2 (USB 3.2 (type A)); 1 (USB 3.2 (type C))

LAN: 1 (RJ-45)

DisplayPort: 1

Audio izlaz: 3 (3.5-mm minijack)

Antenna: 2

HDMI: 1 (HDMI (Type A))

BIOS vrsta: AMI

BIOS: Gigabyte Q-Flash
WfM 2.0 Support
PnP 1.0a Support
UEFI
SMBIOS 2.7 Support
DMI 2.7 Support
ACPI 5.0 Support
256Mb AMI UEFI Legal BIOS with GUI support

Nadzor: Chassis Fan Tachometer
CPU Temperature
CPU Voltage
Chassis Fan multi-speed control

Mainboard Features: RGB LED

Podržani operativni sustavi: Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit

Dodaci: Priručnik
Vijci

Format: ATX

Visina (mm): 244 mm

Širina (mm): 305 mm

Jamstvo u Hrvatskoj: Da

Jamstveni rok (mjeseci): 36 mjeseci(a)

Validacija jamstva: Serijski broj

Bruto težina (kg): 1.7 kg

Neto težina (kg): 1.64 kg

Količina u pakiranju: 1

Bruto težina kutije (kg): 1.7 kg

Težina kartona: 0.2 kg

Težina plastike: 0.1 kg

Količina u kutiji: 1

Vrsta pakiranja: Maloprodajno

EAN kod: 4719331849375
