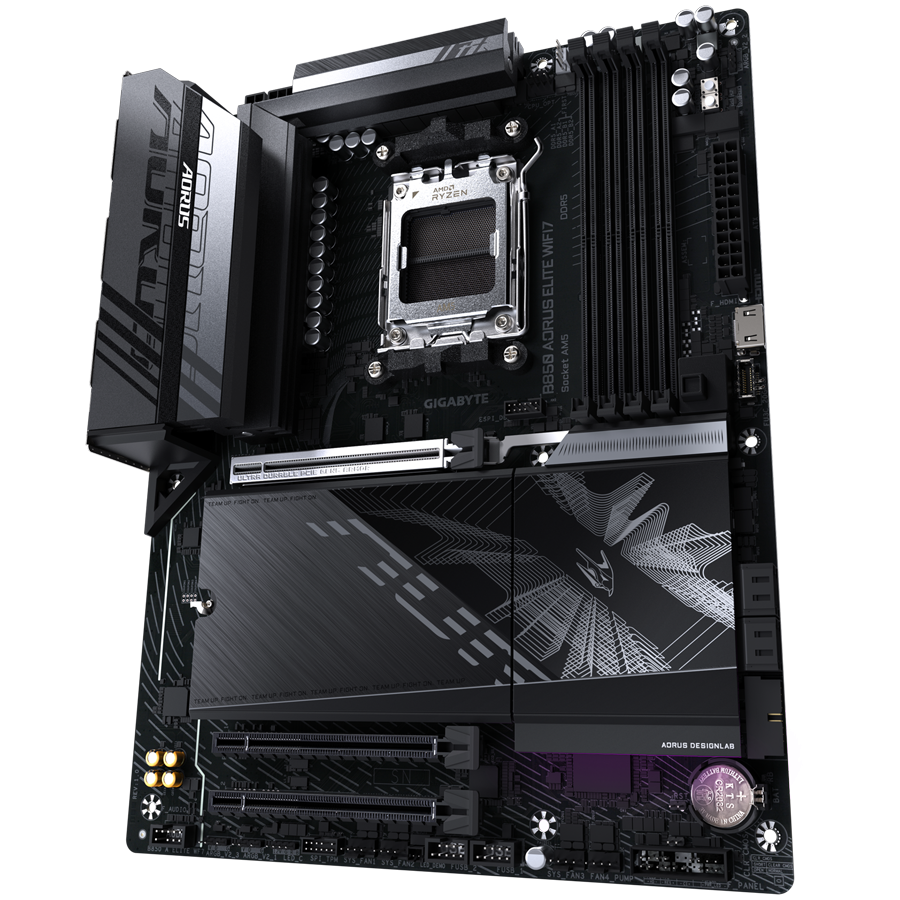

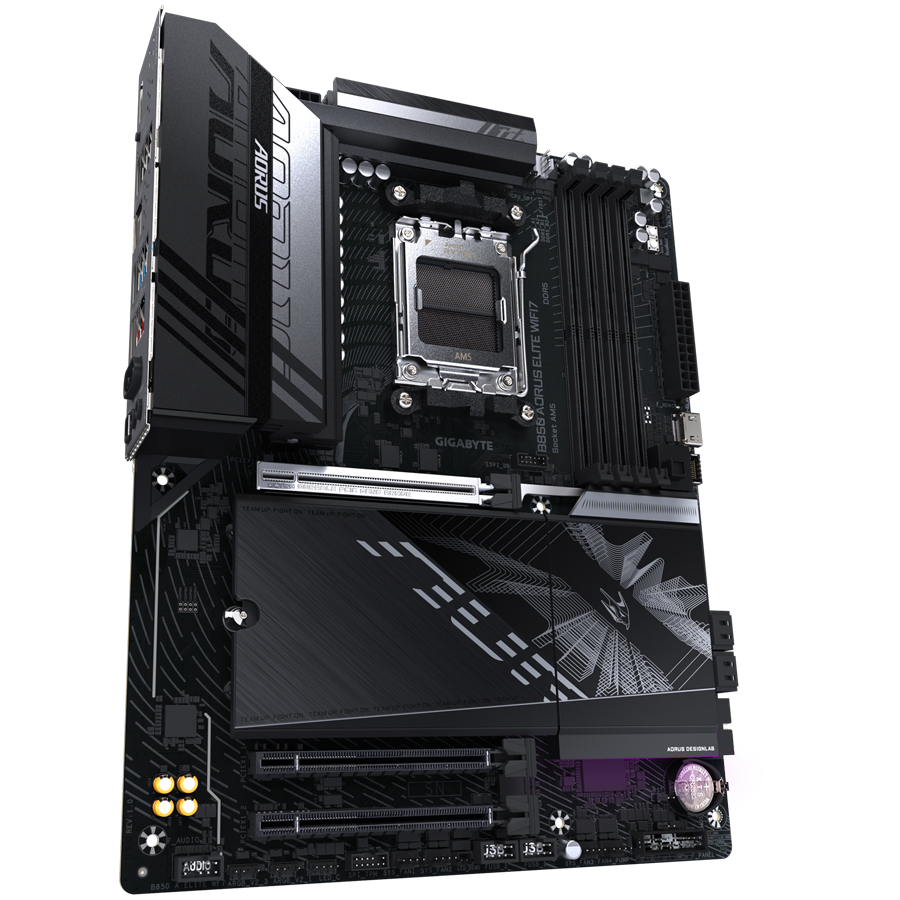

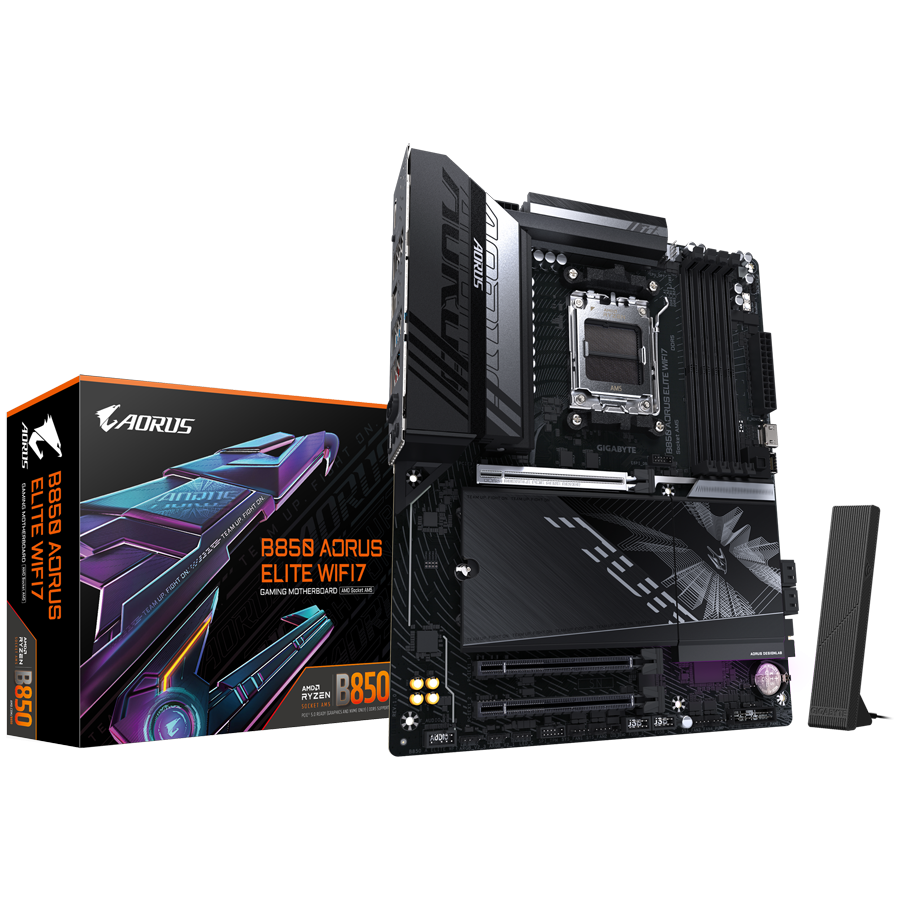

GIGABYTE Mainboard Desktop B850 AORUS ELITE WF7 (AM5, 4xDDR5, 1xDP, 1xHDMI, 2.5GLAN, WiFi7, BT5.4, 1x PCIe x16 5.0, 2xPCIe x16 supporting PCIe 3.0 x1, 3xM.2, 4xSATA3) ATX

Chipset: AMD B850

CPU podrška: AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

CPU podnožje: Socket AM5

CPU Max. količina: 1

Vrsta memorije: DDR5 SDRAM

Format memorije: DIMM 288-pin

Brzina memorije: 8200MHz

Max. kapacitet memorije: 256 GB

Količina utora: 4

Provjera pogrešaka: Non-ECC

Značajke memorije: Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP
AMD EXPO

Integriran: Storage Controller:
PCI Express 5.0 x4 (1 x M.2)
Storage Controller:
PCI Express 4.0 x4 (2 x M.2)
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (4)

Plug-in-card: Wi-Fi Controller:
1 x M.2

Integrirani video kontroler: Da

Model: AMD Radeon

Integrirani audio: Da

Vrsta: Integriran

Audio izlaz: 7.1 Channel Surround

Audio standard: HD audio

Integrirani LAN: Da

Wi-Fi: IEEE 802.11be Wi-Fi 7

Bluetooth: Bluetooth 5.4

Podržana brzina: 2.5 Gbps

PCI Express x16: 3

USB 2.0: 4 (USB 2.0 (type A))

USB 3.2 Gen 2: 1 (USB 3.2 (type C)); 2 (USB 3.2 (type A))

S/PDIF-out Optical: 1 (TOSLINK)

USB 3.2 Gen 1: 5 (USB 3.2 (type A))

DisplayPort: 1

Wi-Fi Antenna: 2

LAN: 1 (RJ-45)

Audio izlaz: 2 (3.5-mm minijack)

BIOS vrsta: AMI

BIOS: Gigabyte Q-Flash
WfM 2.0 Support
PnP 1.0a Support
UEFI
SMBIOS 2.7 Support
DMI 2.7 Support
ACPI 5.0 Support
256 Mb Flash ROM

Mainboard Features: Fan Speed Control

Softver: Norton Internet Security (OEM version)

Podržani operativni sustavi: Microsoft Windows 11 64-bit

Dodaci: Brzi priručnik

Format: ATX

Visina (mm): 244 mm

Širina (mm): 305 mm

Jamstvo u Hrvatskoj: Da

Jamstveni rok (mjeseci): 36 mjeseci(a)

Validacija jamstva: Serijski broj

Bruto težina (kg): 2.45 kg

Neto težina (kg): 2.37 kg

Količina u pakiranju: 1

Bruto težina kutije (kg): 14.73 kg

Težina kartona: 0.05 kg

Težina plastike: 0.03 kg

Količina u kutiji: 6

Vrsta pakiranja: Maloprodajno

EAN kod: 4719331866105
