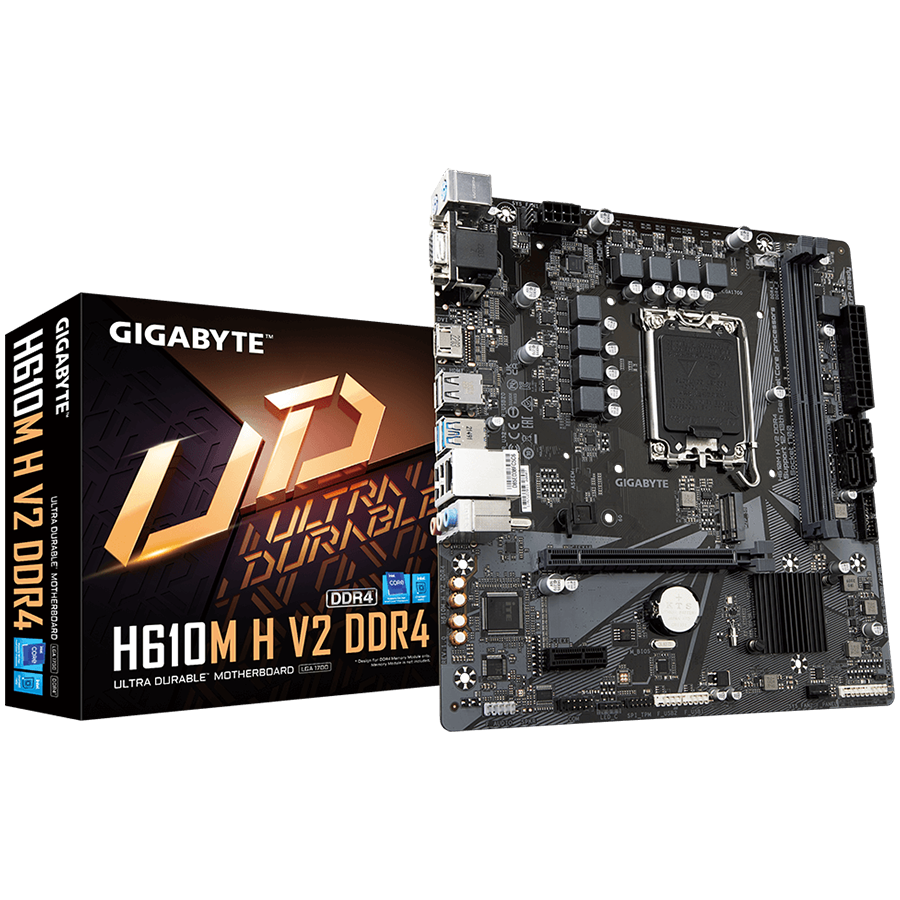

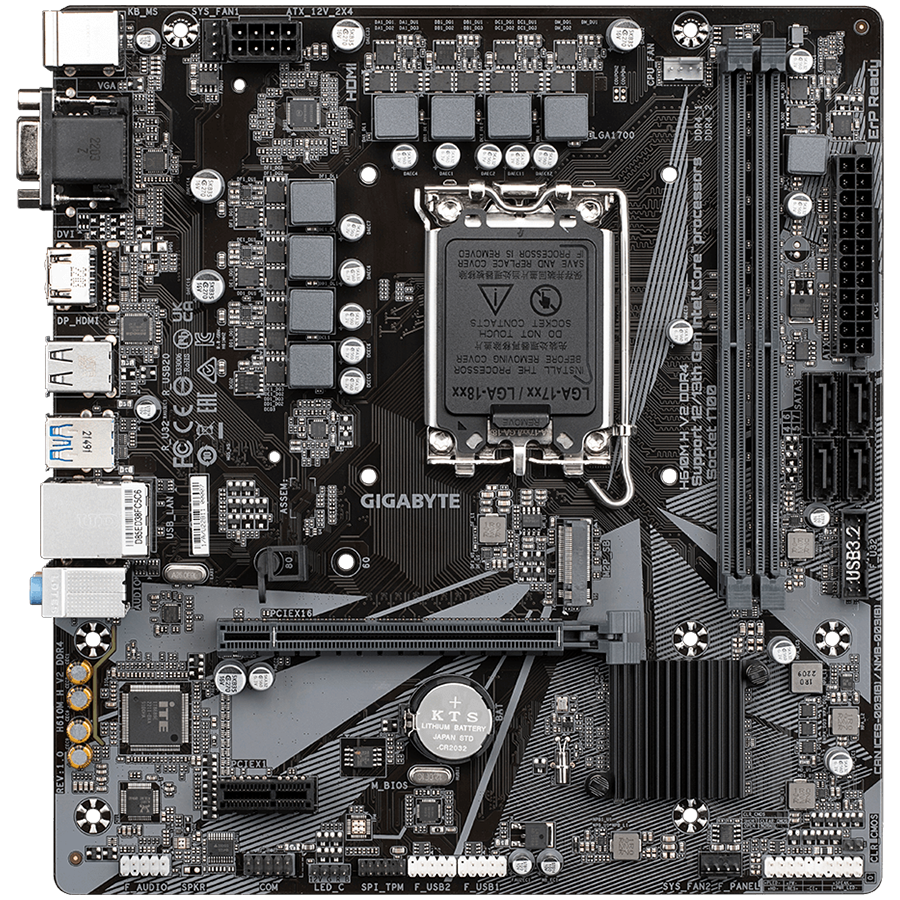

GIGABYTE Mainboard Desktop H610M H V2 DDR4 (LGA1700, 2xDDR4, 1xD-Sub, 1xHDMI, GLAN, 1xPCI Express x16 4.0, 1xPCI Express x16 3.0, 1xM.2, 4xSATAIII, 4xUSB3.2 Gen1, 8xUSB2.0/1.1) mATX

Chipset: Intel H610

CPU podrška: Intel 12th Gen Processors
Intel 13th Gen Processors

CPU podnožje: Socket 1700

CPU Max. količina: 1

Vrsta memorije: DDR4 SDRAM

Format memorije: DIMM 288-pin

Brzina memorije: 2133MHz(PC4-17000)
2400MHz(PC4-19200)
2666MHz(PC4-21300)
2800MHz(PC4-22400)
2933MHz(PC4-23400)
3000MHz(PC4-24000)
3200MHz(PC4-25600)

Max. kapacitet memorije: 64 GB

Količina utora: 2

Provjera pogrešaka: non-ECC

Značajke memorije: Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP

Integriran: Storage Controller:
SATA III-600 (4)
Storage Controller:
PCI Express 3.0 x4 (1 x M.2 (Key M))

Integrirani video kontroler: Da

Model: Intel HD Graphics

Integrirani audio: Da

Vrsta: Integriran

Audio izlaz: 7.1 Channel Surround

Audio standard: HD audio

Integrirani LAN: Da

Podržana brzina: Gigabit Ethernet/Fast Ethernet/Ethernet

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 1

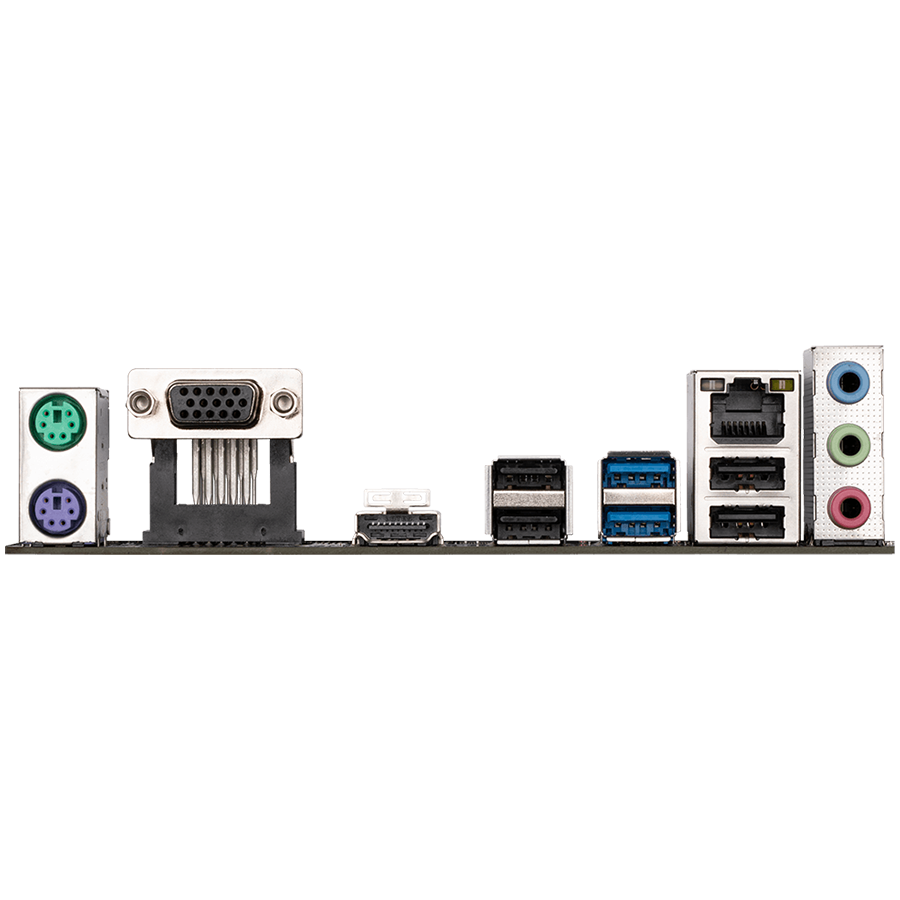

USB 3.2 Gen 1: 2 (USB 3.2 (type A))

USB 2.0: 4 (USB 2.0 (type A))

HDMI: 1 (HDMI (Type A))

LAN: 1 (RJ-45)

Audio izlaz: 3 (3.5-mm minijack)

PS/2: 2

VGA: 1 (15-pin D-sub)

BIOS vrsta: AMI

BIOS: Gigabyte @BIOS
Gigabyte Q-Flash
Gigabyte Xpress Install
WfM 2.0 Support
Gigabyte EasyTune
PnP 1.0a Support
UEFI
SMBIOS 2.7 Support
PXE boot
128 Mb Flash ROM
DMI 2.7 Support
ACPI 5.0 Support

Wake up/Sleep: Wake on LAN

Mainboard Features: Fan Speed Control

Softver: Norton Internet Security (OEM version)

Podržani operativni sustavi: Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit

Dodaci: Priručnik

Format: Micro ATX

Visina (mm): 215 mm

Širina (mm): 230 mm

Jamstvo u Hrvatskoj: Da

Jamstveni rok (mjeseci): 36 mjeseci(a)

Validacija jamstva: Serijski broj

Bruto težina (kg): 0.79 kg

Neto težina (kg): 0.594 kg

Količina u pakiranju: 1

Bruto težina kutije (kg): 7.94 kg

Težina kartona: 0.18 kg

Težina plastike: 0.02 kg

Količina u kutiji: 10

Vrsta pakiranja: Maloprodajno

EAN kod: 4719331851743
