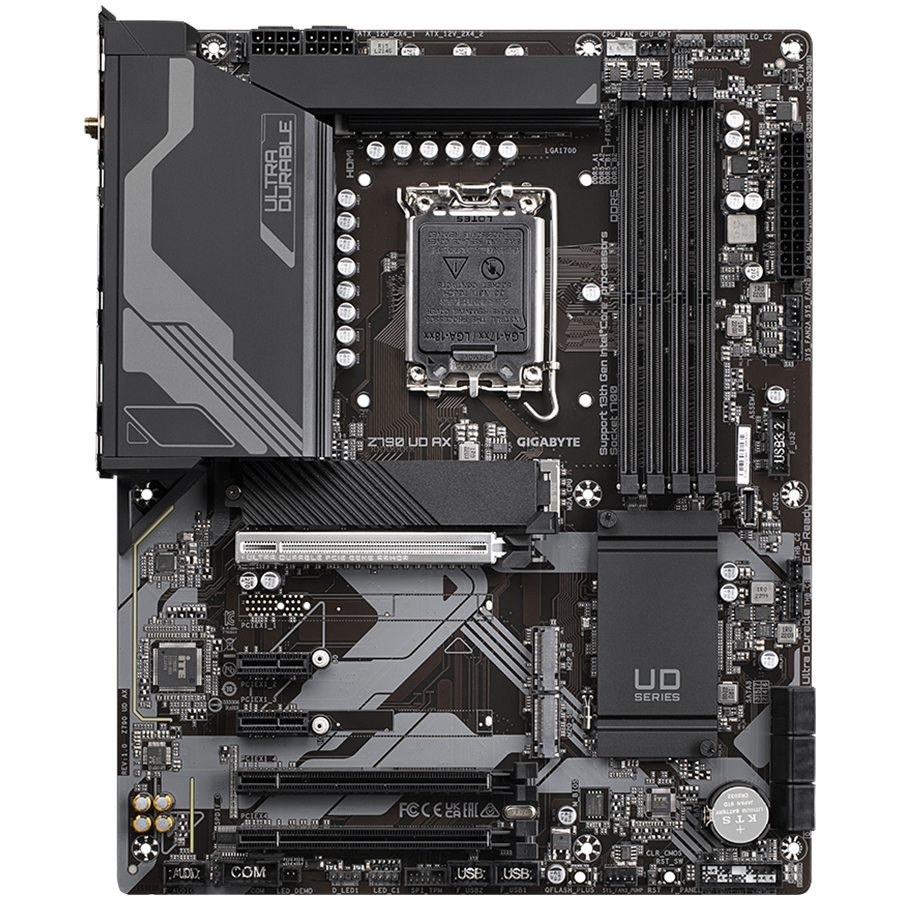

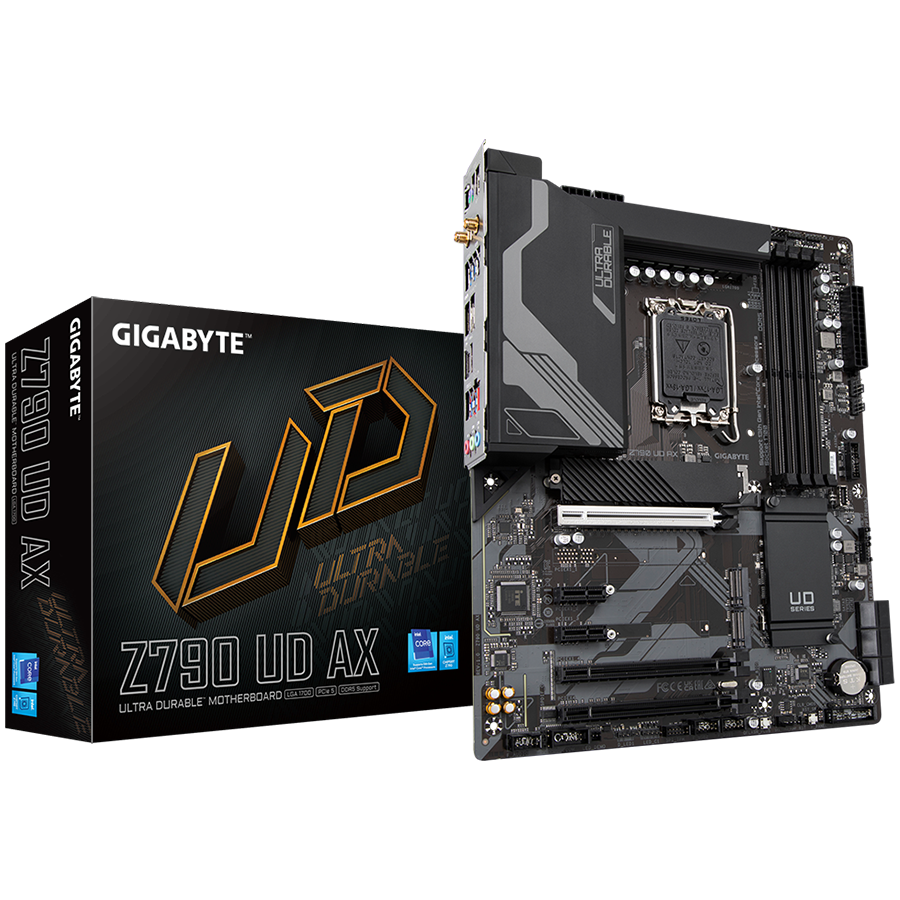

GIGABYTE Mainboard Desktop Z790 UD AX

Chipset: Intel Z790

CPU podrška: Intel 12th Gen Processors
Intel 13th Gen Processors
Intel 14th Gen Processors

CPU podnožje: Socket 1700

CPU Max. količina: 1

Vrsta memorije: DDR5 SDRAM

Format memorije: DIMM 288-pin

Brzina memorije: 4800MHz(PC5-38400)

Max. kapacitet memorije: 192 GB

Količina utora: 4

Provjera pogrešaka: non-ECC

Značajke memorije: Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP

Plug-in-card: Wi-Fi Controller:
Realtek RTL8852CE

Integriran: Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (6)
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
PCI Express 4.0 x4 (3 x M.2 (Key M))

Integrirani video kontroler: Da

Integrirani audio: Da

Vrsta: Integriran

Audio izlaz: 7.1 Channel Surround

Audio standard: HD audio

Integrirani LAN: Da

Wi-Fi: IEEE 802.11ax Wi-Fi 6

Bluetooth: Bluetooth 5.3

Podržana brzina: Gigabit Ethernet/Fast Ethernet/Ethernet
2.5 Gbps

PCI Express 5.0 x16: 1

PCI Express 4.0 x16: 1

PCI Express 3.0 x16: 1

PCI Express 3.0 x1: 2

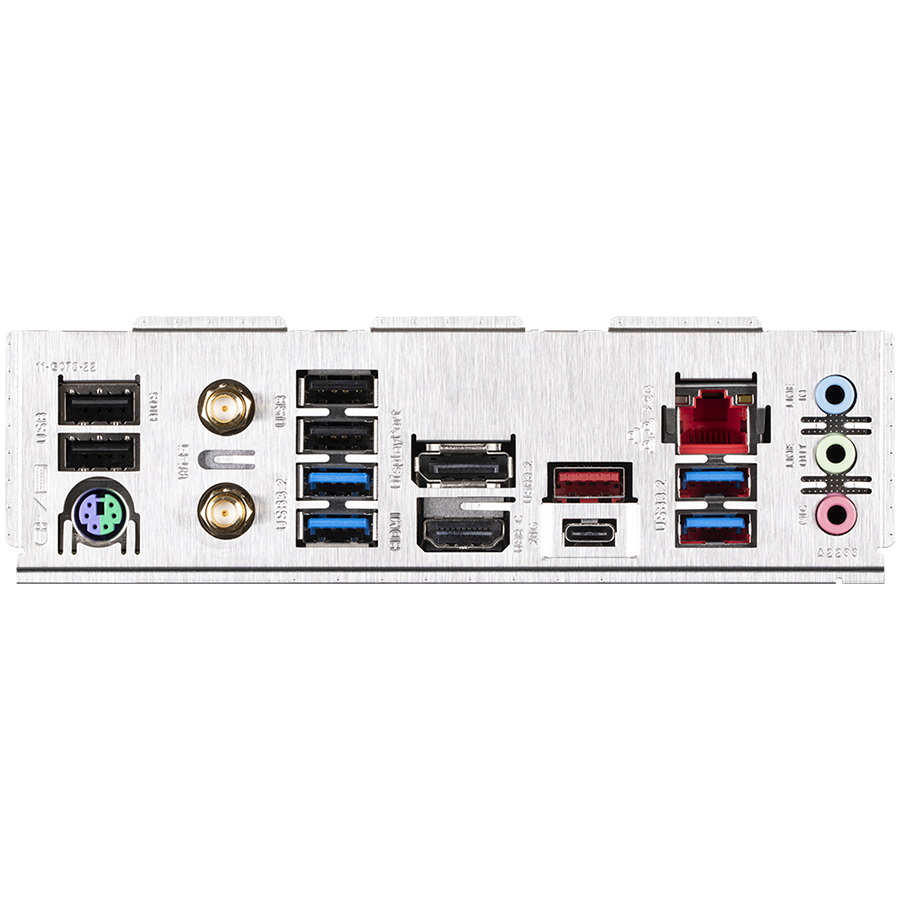

USB 3.2 Gen 2 x2: 1 (USB 3.2 (type C))

USB 3.2 Gen 2: 1 (USB 3.2 (type A))

USB 3.2 Gen 1: 4 (USB 3.2 (type A))

USB 2.0: 4 (USB 2.0 (type A))

Antenna: 2

HDMI: 1 (HDMI (Type A))

DisplayPort: 1

LAN: 1 (RJ-45)

Audio izlaz: 3 (3.5-mm minijack)

BIOS vrsta: AMI

BIOS: Gigabyte Q-Flash
WfM 2.0 Support
PnP 1.0a Support
UEFI
SMBIOS 2.7 Support
DMI 2.7 Support
ACPI 5.0 Support
256 Mb Flash ROM

Nadzor: CPU Temperature
CPU Voltage
System Temperature
System Voltage

Power Connectors Type: 24+8 pin

Mainboard Features: Fan Speed Control
AMD CrossFire technology

Softver: Norton Internet Security (OEM version)

Podržani operativni sustavi: Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit

Format: ATX

Visina (mm): 244 mm

Širina (mm): 305 mm

Jamstvo u Hrvatskoj: Da

Jamstveni rok (mjeseci): 36 mjeseci(a)

Validacija jamstva: Serijski broj

Bruto težina (kg): 1.742 kg

Neto težina (kg): 1.5 kg

Količina u pakiranju: 1

Bruto težina kutije (kg): 20 kg

Težina kartona: 0.25 kg

Težina plastike: 0.25 kg

Količina u kutiji: 10

Vrsta pakiranja: Maloprodajno

EAN kod: 4719331850395
