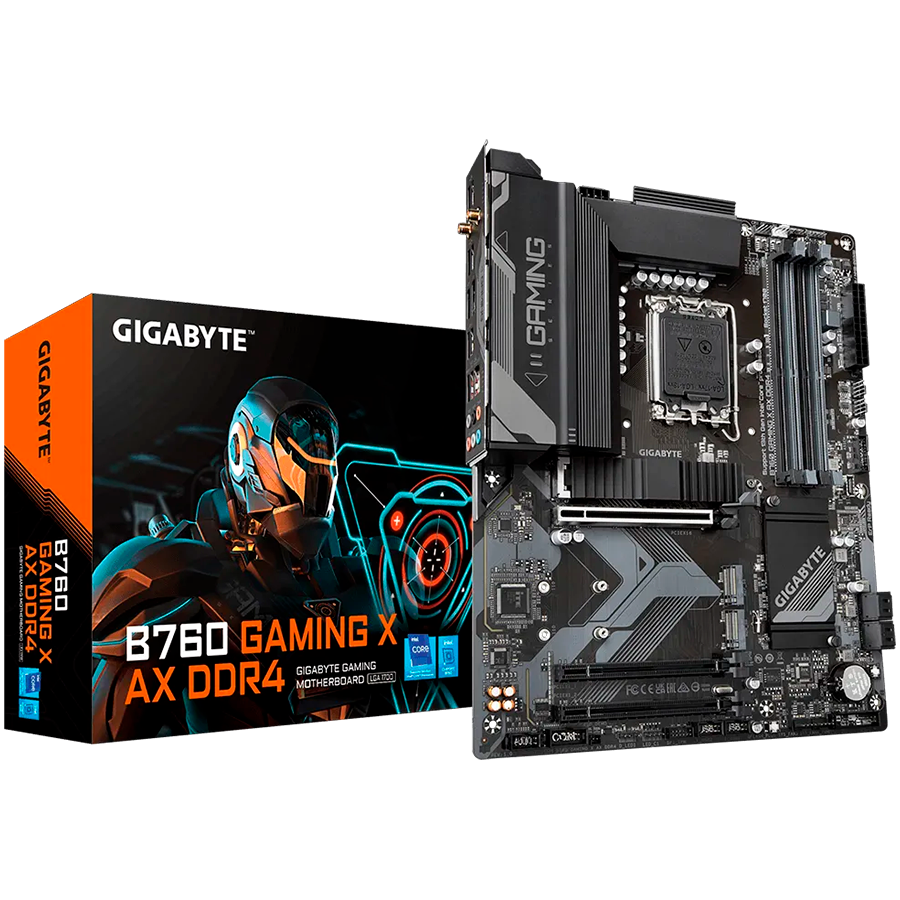

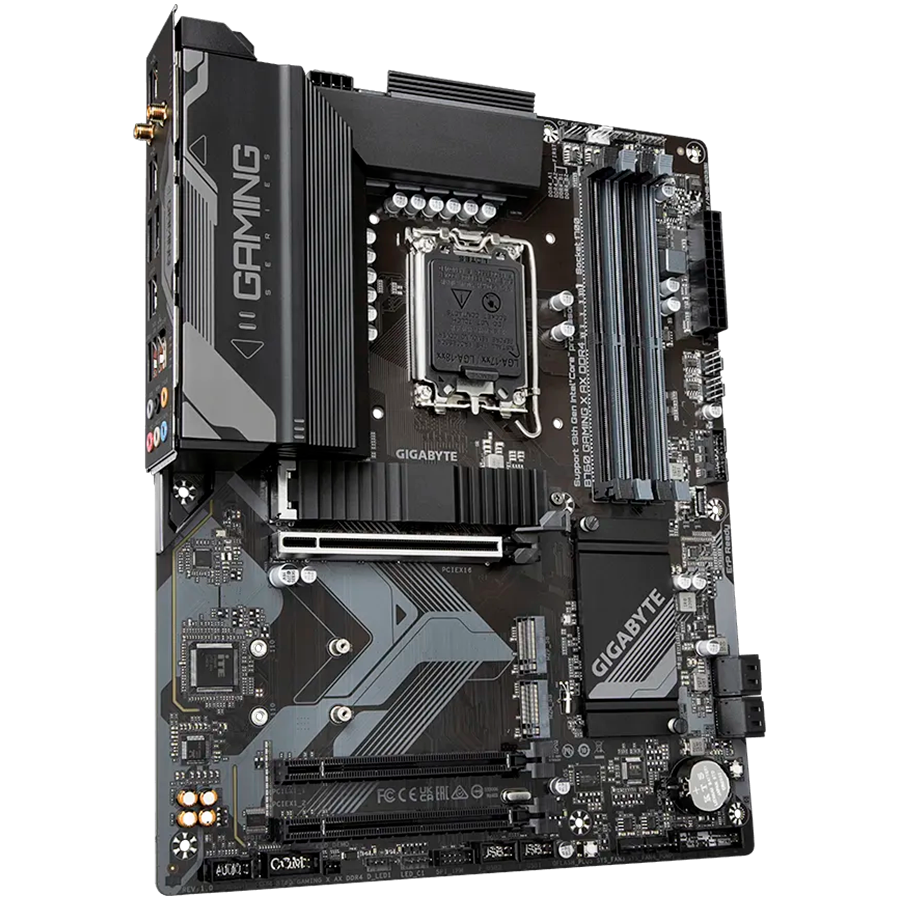

GIGABYTE MB LGA1700, B760, 4xDDR4, DP + HDMI, 3xPCIe x16 4.0, 3xM.2, 4xSATA, GbE LAN, ATX

Chipset: Intel B760

CPU podrška: Intel 12th Gen Processors
Intel 13th Gen Processors

CPU podnožje: Socket 1700

CPU Max. količina: 1

Vrsta memorije: DDR4 SDRAM

Format memorije: DIMM 288-pin

Brzina memorije: 2133MHz(PC4-17000)
2400MHz(PC4-19200)
2666MHz(PC4-21300)
2933MHz(PC4-23400)
3000MHz(PC4-24000)
3200MHz(PC4-25600)

Max. kapacitet memorije: 128 GB

Količina utora: 4

Provjera pogrešaka: non-ECC

Značajke memorije: Unbuffered
XMP

Plug-in-card: Wi-Fi Controller:
AMD Wi-Fi 6E RZ608

Integriran: Storage Controller:
PCI Express 4.0 x4 (3 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (4)

Integrirani audio: Da

Vrsta: Integriran

Audio izlaz: 7.1 Channel Surround

Audio standard: HD audio

Integrirani LAN: Da

Wi-Fi: IEEE 802.11ax Wi-Fi 6

Bluetooth: Bluetooth 5.2

Podržana brzina: 2.5 Gbps

PCI Express 4.0 x16: 1

PCI Express 3.0 x16: 2

USB 3.2 Gen 2: 1 (USB 3.2 (type A))

USB 3.2 Gen 1: 2 (USB 3.2 (type A))

USB 2.0: 5 (USB 2.0 (type A))

Antenna: 2

DisplayPort: 1

HDMI: 1 (HDMI (Type A))

LAN: 1 (RJ-45)

Audio izlaz: 6 (3.5-mm minijack)

BIOS vrsta: AMI

BIOS: Gigabyte Q-Flash
WfM 2.0 Support
PnP 1.0a Support
UEFI
SMBIOS 2.7 Support
DMI 2.7 Support
ACPI 5.0 Support
256 Mb Flash ROM

Nadzor: CPU Temperature
CPU Voltage
System Temperature
System Voltage

Power Connectors Type: 24+8 pin

Mainboard Features: Fan Speed Control

Softver: Norton Internet Security (OEM version)

Podržani operativni sustavi: Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit

Format: ATX

Visina (mm): 244 mm

Širina (mm): 305 mm

Jamstvo u Hrvatskoj: Da

Jamstveni rok (mjeseci): 36 mjeseci(a)

Validacija jamstva: Serijski broj

Bruto težina (kg): 1.65 kg

Neto težina (kg): 1.2 kg

Količina u pakiranju: 1

Bruto težina kutije (kg): 12 kg

Težina kartona: 0.2 kg

Težina plastike: 0.1 kg

Količina u kutiji: 8

Vrsta pakiranja: Maloprodajno

EAN kod: 4719331850852
