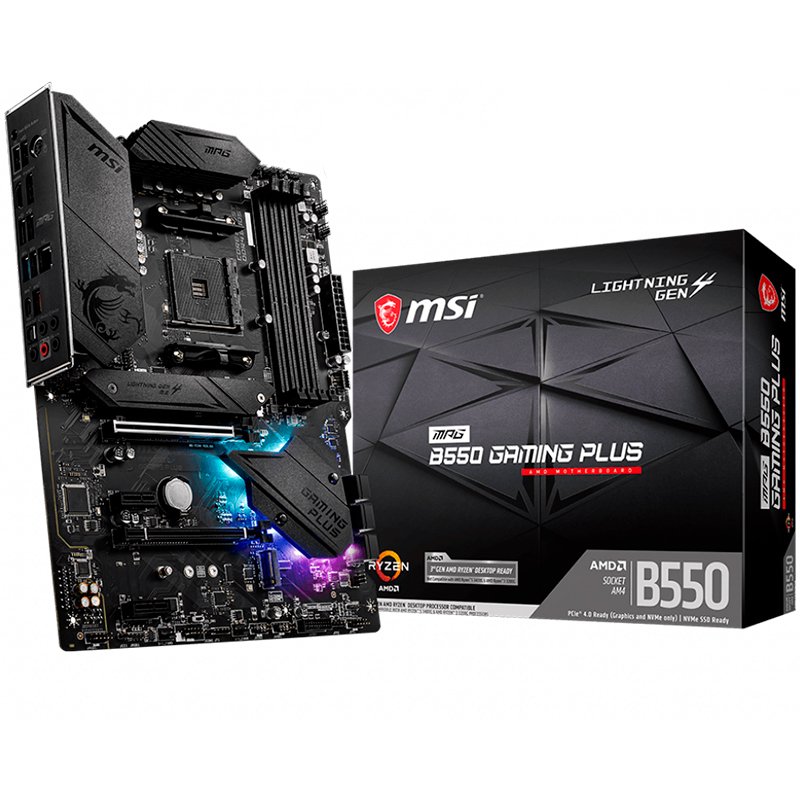

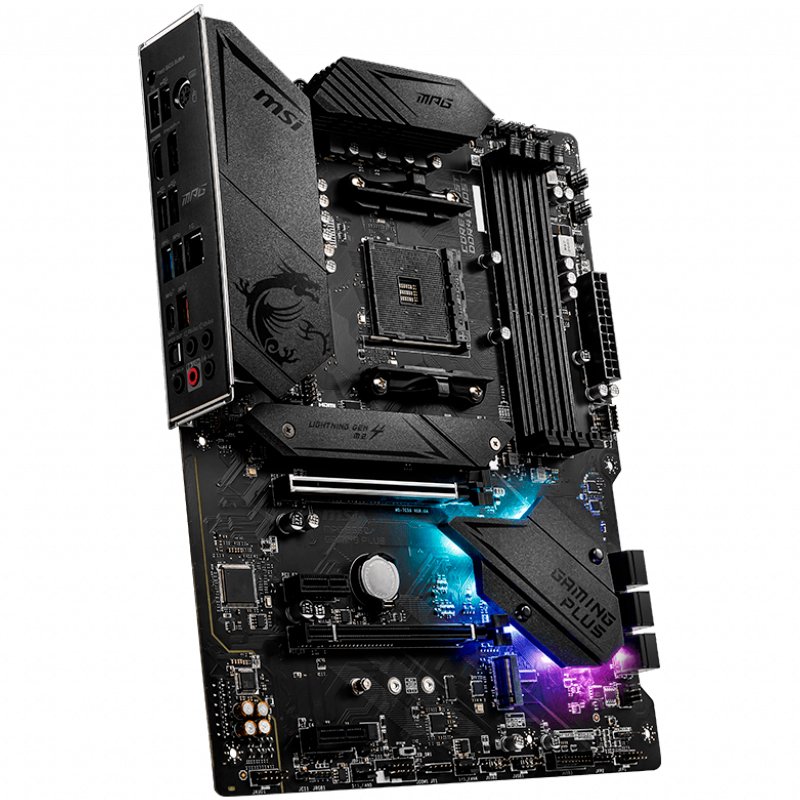

MSI Main Board Desktop MPG B550 GAMING PLUS (AM4, 4xDDR4, 1xPCI-E x16, 2xPCI-E x1, 2xM.2, 6xSATA3, HDMI, DP, ATX, retail)

Chipset: AMD B550

CPU podrška: AMD Ryzen Series

CPU podnožje: Socket AM4

CPU Max. količina: 1

Vrsta memorije: DDR4 SDRAM

Format memorije: DIMM 288-pin

Brzina memorije: 1866MHz(PC4-14900)
2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2800MHz(PC4-22400)
2933MHz(PC4-23400)
3000MHz(PC4-24000)
3200MHz(PC4-25600)

Max. kapacitet memorije: 128 GB

Količina utora: 4

Provjera pogrešaka: non-ECC

Značajke memorije: Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP

Integriran: Storage Controller:
Supports: Level 0, Level 1, Level 10
SATA III-600 (6)
Storage Controller:
PCIe/SATA (1 x M.2 (Key M))
Storage Controller:
PCI Express 3.0 x4 (1 x M.2 (Key M))

Integrirani audio: Da

Vrsta: Integriran

Chipset: Realtek ALC892/ALC897

Audio izlaz: 7.1 Channel Surround

Audio standard: HD audio

Integrirani LAN: Da

LAN Chipset: Realtek RTL8111H

Podržana brzina: Gigabit Ethernet/Fast Ethernet/Ethernet

PCI Express x16: 2

PCI Express 3.0 x1: 2

PS/2: 1

LAN: 1 (RJ-45)

USB 3.2 Gen 2: 1 (USB 3.2 (type A)); 1 (USB 3.2 (type C))

USB 2.0: 4 (USB 2.0 (type A))

USB 3.2 Gen 1: 2 (USB 3.2 (type A))

Audio izlaz: 5 (3.5-mm minijack)

S/PDIF-out Optical: 1 (TOSLINK)

DisplayPort: 1

HDMI: 1 (HDMI (Type A))

Power Connectors Type: 24+8 pin

Mainboard Features: AMD 2-Way CrossFire Technology

Kabeli: 2 x SATA cables

Dodaci: Brzi priručnik
Driver CD

Format: ATX

Visina (mm): 244 mm

Širina (mm): 305 mm

Jamstvo u Hrvatskoj: Da

Jamstveni rok (mjeseci): 36 mjeseci(a)

Validacija jamstva: Serijski broj

Bruto težina (kg): 2 kg

Količina u pakiranju: 1

Bruto težina kutije (kg): 10 kg

Količina u kutiji: 5

Vrsta pakiranja: Box
