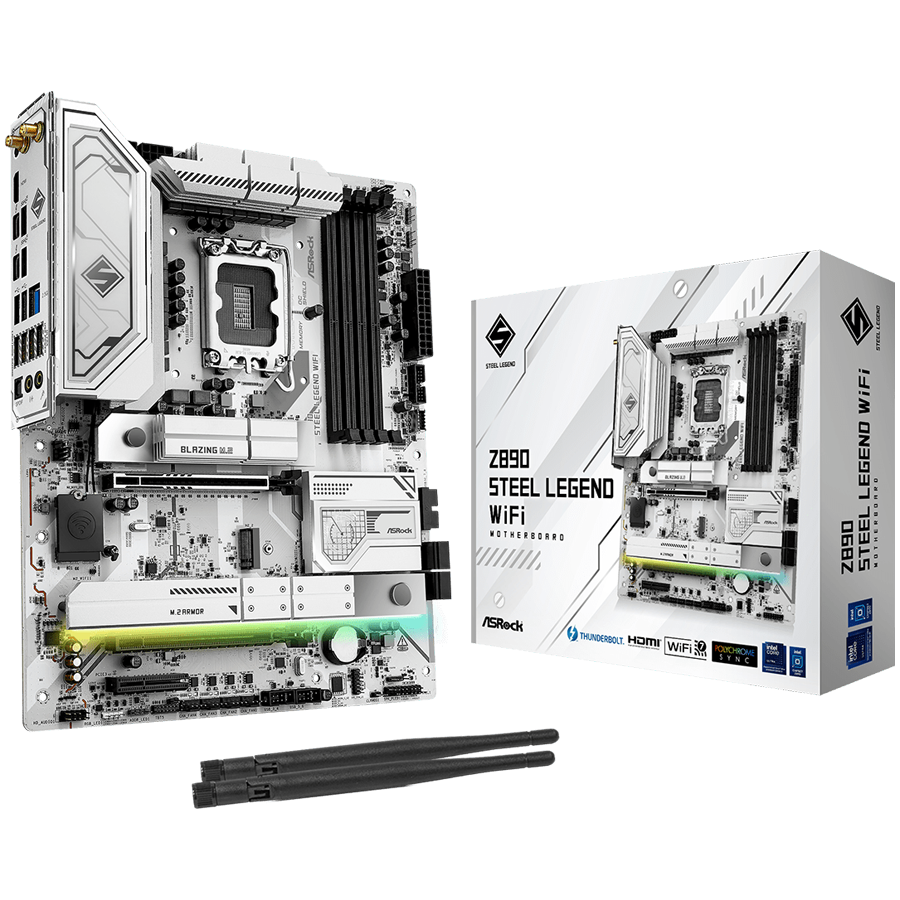

ASRock Main Board INTEL Z890/4DDR5/WIFI

Chipset: Intel Z890

CPU podrška: Intel Core Ultra Processors

CPU podnožje: Socket 1851

Architecture Features: Intel Turbo Boost Max Technology 3.0
Intel Hybrid Technology
Intel Thermal Velocity Boost
Intel Adaptive Boost Technology

CPU Max. količina: 1

Vrsta memorije: DDR5 SDRAM

Format memorije: DIMM 288-pin

Brzina memorije: 5600MHz(PC5-44800)

Max. kapacitet memorije: 256 GB

Količina utora: 4

Provjera pogrešaka: non-ECC

Značajke memorije: Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP

Integriran: Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (4)
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
PCI Express 5.0 x4 (1 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
PCI Express 4.0 x4 (2 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
PCIe 4.0 x4/SATA (1 x M.2 (Key M))

Plug-in-card: Wi-Fi Controller:
1 x M.2 (Key E)

Integrirani video kontroler: Da

Integrirani audio: Da

Vrsta: Integriran

Chipset: Realtek ALC1220

Audio izlaz: 7.1 Channel Surround

Audio standard: HD audio
Nahimic Audio

Integrirani LAN: Da

LAN Chipset: Realtek Dragon RTL8125BG

Wi-Fi: IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n Wi-Fi 4
IEEE 802.11ac Wi-Fi 5
IEEE 802.11ax Wi-Fi 6
IEEE 802.11ax Wi-Fi 6E
IEEE 802.11be Wi-Fi 7

Bluetooth: Bluetooth 5.4

Podržana brzina: 2.5 Gbps

PCI Express 5.0 x16: 1

PCI Express 4.0 x16: 1

PCI Express 4.0 x4: 1

HDMI: 1 (HDMI (Type A))

S/PDIF-out Optical: 1

Thunderbolt: 2 (USB Type C)

USB 3.2 Gen 2: 2 (USB 3.2 (type A))

USB 2.0: 2 (USB 2.0 (type A))

LAN: 1 (RJ-45)

Audio Line-Out: 1 (3.5-mm minijack)

Mikrofon ulaz: 1 (3.5-mm minijack)

USB 3.2 Gen 1: 4 (USB 3.2 (type A))

Antenna: 2

BIOS: 256Mb AMI UEFI Legal BIOS with GUI support

Power Connectors Type: 24+8 pin

Podržani operativni sustavi: Microsoft Windows 11 64-bit

Kabeli: 2 x SATA Data Cables
1 x Thermistor Cable

Dodaci: WiFi antenna

Standardi: FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)

Format: ATX

Visina (mm): 244 mm

Širina (mm): 305 mm

Jamstvo u Hrvatskoj: Da

Jamstveni rok (mjeseci): 36 mjeseci(a)

Validacija jamstva: Serijski broj

Dužina (mm): 346 mm

Širina (mm): 281 mm

Visina (mm): 75 mm

Bruto težina (kg): 2.05 kg

Neto težina (kg): 1.315 kg

Količina u pakiranju: 1

Bruto težina kutije (kg): 10.25 kg

Težina kartona: 0.01 kg

Težina plastike: 0.01 kg

Količina u kutiji: 5

Vrsta pakiranja: Maloprodajno

EAN kod: 4710483947520
